Description

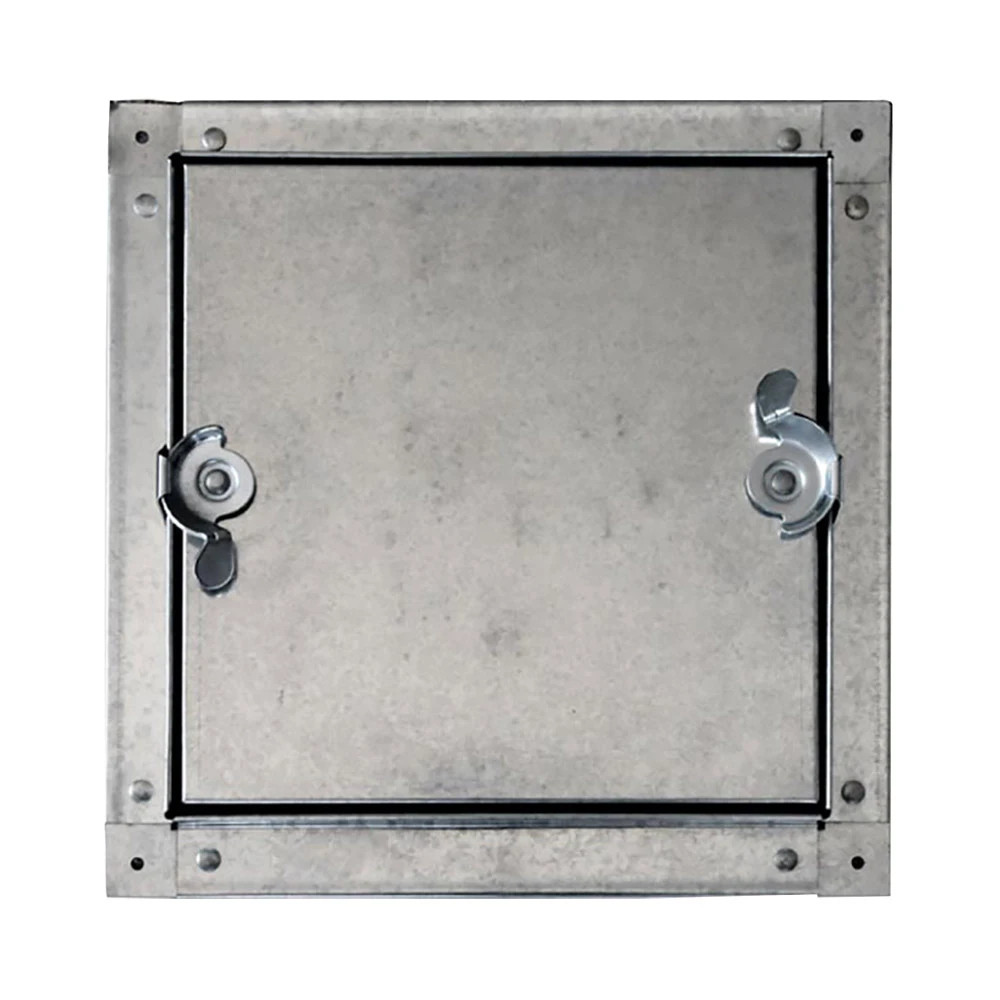

16" x 16" BA-CDSS-6030 Self-Stick Duct Panel
Accessing ductwork for maintenance or inspection can often be time-consuming, especially when dealing with complex installations or tight spaces. Traditional panels may require extra tools, hardware, or labor, which slows down the job and increases frustration on-site.
The 16" x 16" BA-CDSS-6030 Self-Stick Duct Panel solves these issues with its easy-to-install self-stick frame and insulated double-panel design. This smart solution offers fast access while helping reduce air leakage—making it a convenient and eco-conscious choice for any duct system.
Why Choose the 16" x 16" BA-CDSS-6030?
- Self-Stick Frame for Quick Installation: The 16" x 16" BA-CDSS-6030 features an innovative self-stick frame that simplifies installation, saving time and effort.
- Energy-Efficient Insulated Panel: This self-stick duct panel is filled with 1" fiberglass insulation, helping reduce energy loss and ensuring better temperature control.
- Durable Construction: Built with 24-gauge galvanized steel for both the door and frame, this panel is designed to last in demanding commercial and industrial environments.
- Minimal Air Leakage: Tested to 10" SP with minimal leakage, the 16" x 16" BA-CDSS-6030 ensures that your duct system stays sealed for efficient performance.
- Customizable Finish and Features: Available in aluminum or stainless steel finishes and equipped with options like locks and handles, you can tailor the BA-CDSS-6030 to fit your project requirements.
Want to learn more about improving your duct access? Read "The Benefits of Duct Access Doors" to discover how these solutions can enhance your system's efficiency and maintenance.

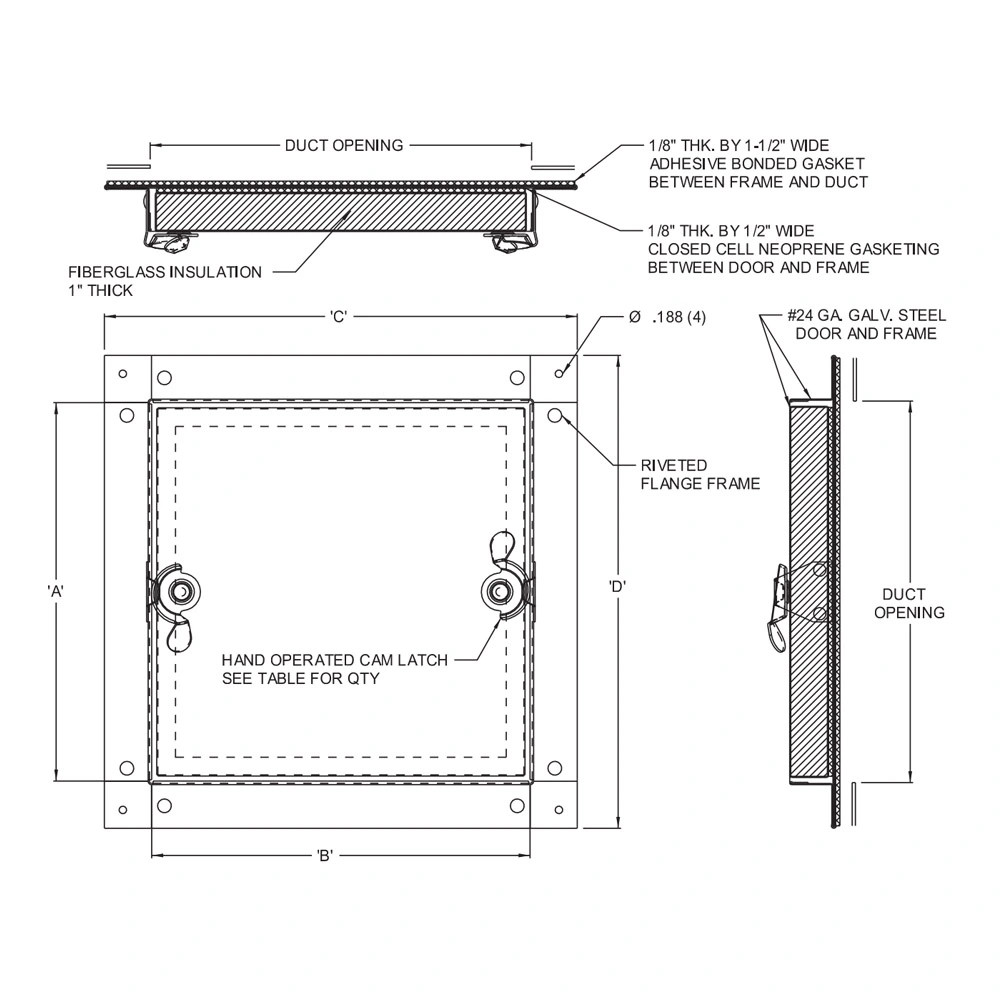

Product Specifications
- Dimensions: 16" x 16"
- Door Material: 24 gauge galvanized steel, double panel
- Frame Material: 24 gauge galvanized steel
- Insulation: 1" fiberglass insulation in door panel
- Gasketing: 1/8" thick x 1/2" wide closed-cell neoprene gasketing between door and frame and 1/8" thick x 1/2" wide adhesive-bonded gasket between frame and duct
- Latch: Self-tightening, hand-operated cam latches
- Hardware: Hex head sheet metal screws
- Frame: Self-stick frame for easy installation
- Leakage Test: Tested to 10" SP with minimal leakage
- Finish Options: Aluminum or stainless steel
- Optional Features: Cylinder lock & key
- Optional Features: Hasp + staple
- Optional Features: L handle
