BA-DRD-60
|
|
Description
BA-DRD-60

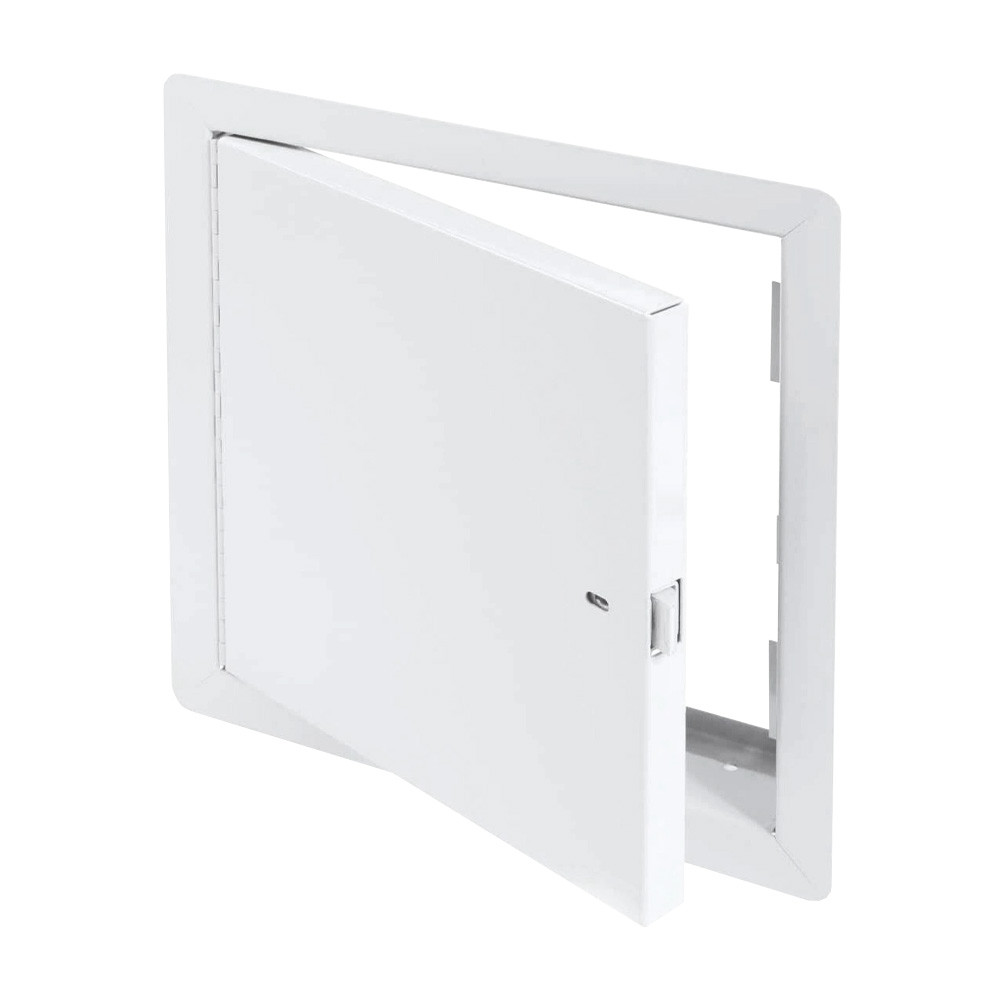

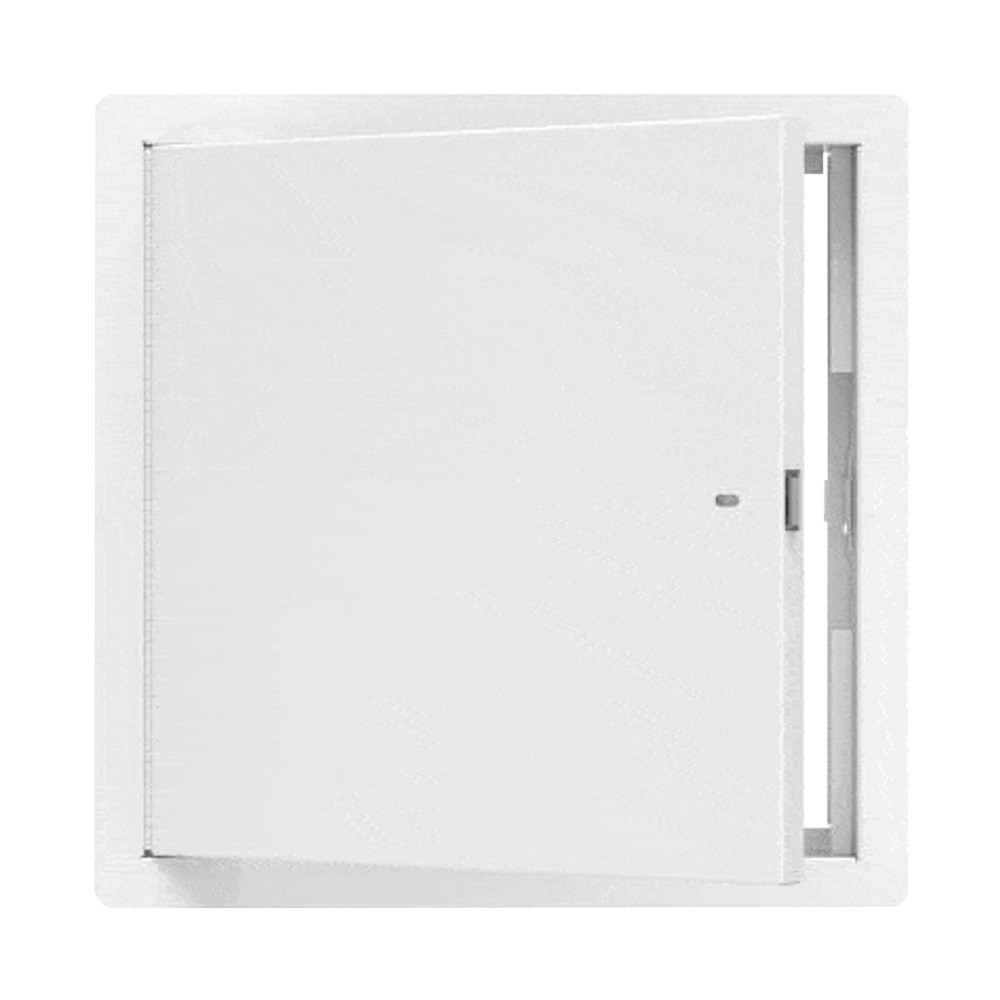

22” x 36” - Draft Stop Access Door – Exposed Flange and Gasket
As an architect, designer, or contractor, you take a lot of care to ensure a finished product that is functional, efficient, and aesthetically pleasing for the benefit of clients and eventual occupants. However, outside forces such as draft airflow reduce the efficiency of your building and negatively affect the well-being of occupants, contributing to more significant discomfort.
Installing draft stoppers such as our BA-DRD-60 22” x 36” - Draft Stop Access Door – Exposed Flange and Gasket across your non-rated walls and ceilings is essential for increasing your buildings' efficiency while promoting a more comfortable environment.
In buildings such as office spaces, schools, and warehouses, minimizing draft airflow is critical to enhancing overall peace of mind and productivity. With the BA-DRD-60, you will take a significant step to minimize draft airflow throughout your indoor spaces!
Why Choose the BA-DRD-60?
Enhanced Airflow Control: The BA-DRD-60's flush-to-frame door and high-quality neoprene gaskets prevent unwanted airflow between areas for worry-free operation.
Reliable Access: BA-DRD-60 utilizes a durable continuous piano hinge, perfect for high-traffic worksites and applications requiring openings greater than 90 degrees.
Structural Reinforcement: BA-DRD-60's exposed flange not only provides structural support to your application, but its flush finish also further minimizes instances of draft airflow.
Self-Closing & Self-Latching: With its spring-assisted self-closing and self-latching door, erroneous tasks such as closing the panel, locating the key, and locking the door are out of the equation.
Two-Way Access: BA-DRD-60 features an inside panel release, standard on all models for convenience and maximum utility.
Designed to Blend Right In: Our BA-DRD-60's non-toxic, high-quality white powder coat is colored and textured to perfection. However, if necessary, feel free to paint or wallpaper over it!
The BA-DRD-60's reliable spring mechanism and slam-latch will ensure secure and hands-free closure so you can keep your hands on your tools while saving time and energy. Self-closing latches offer substantially more site control while preventing potential mishaps where controlled entries and exits are necessary.
BA-DRD-60 has a thicker flange and door made of steel that has been cold rolled and provides sturdy reinforced support throughout your non-rated drywall or masonry surfaces. The wider 1" exposed flange also allows easier and hassle-free installations.
Where enhanced security is required, you can upgrade the standard ring-tool-operated slam latch to a key-operated cylinder slam latch, mortise slam latch, or mortise slam latch with a cylinder.
Specifications:
- Dimensions: 22” x 36”
- Material: 16-gauge cold rolled steel
- Hinge: Continuous piano hinge. Hinge location: Hinges must be on the second dimension (height)
- Gasket: High-quality neoprene gasket
- Locking Mechanism: Both the self-latching tool-operated slam latch and ring-operated slam latch included
- Flange: 1" exposed flange
- Frame: 2½" in depth, made of cold rolled steel
- Rough Opening: Door sizes + ¼ " or + 6mm
- Finish: High-quality white powder coat primer
- Packaging: Individually wrapped, one door per box
Efficiency is of the utmost importance when you're on a deadline. Marginal minutes spent on a job site add up, and we have crafted our BA-DRD-60 22" x 36” - Draft Stop Access Door – Exposed Flange and Gasket to minimize inefficiencies. Include this access door in your next project today!
