BA-JD
|
|
Description
48" x 30" Steel Drainage Floor Door – 300 PSF – Double Leaf

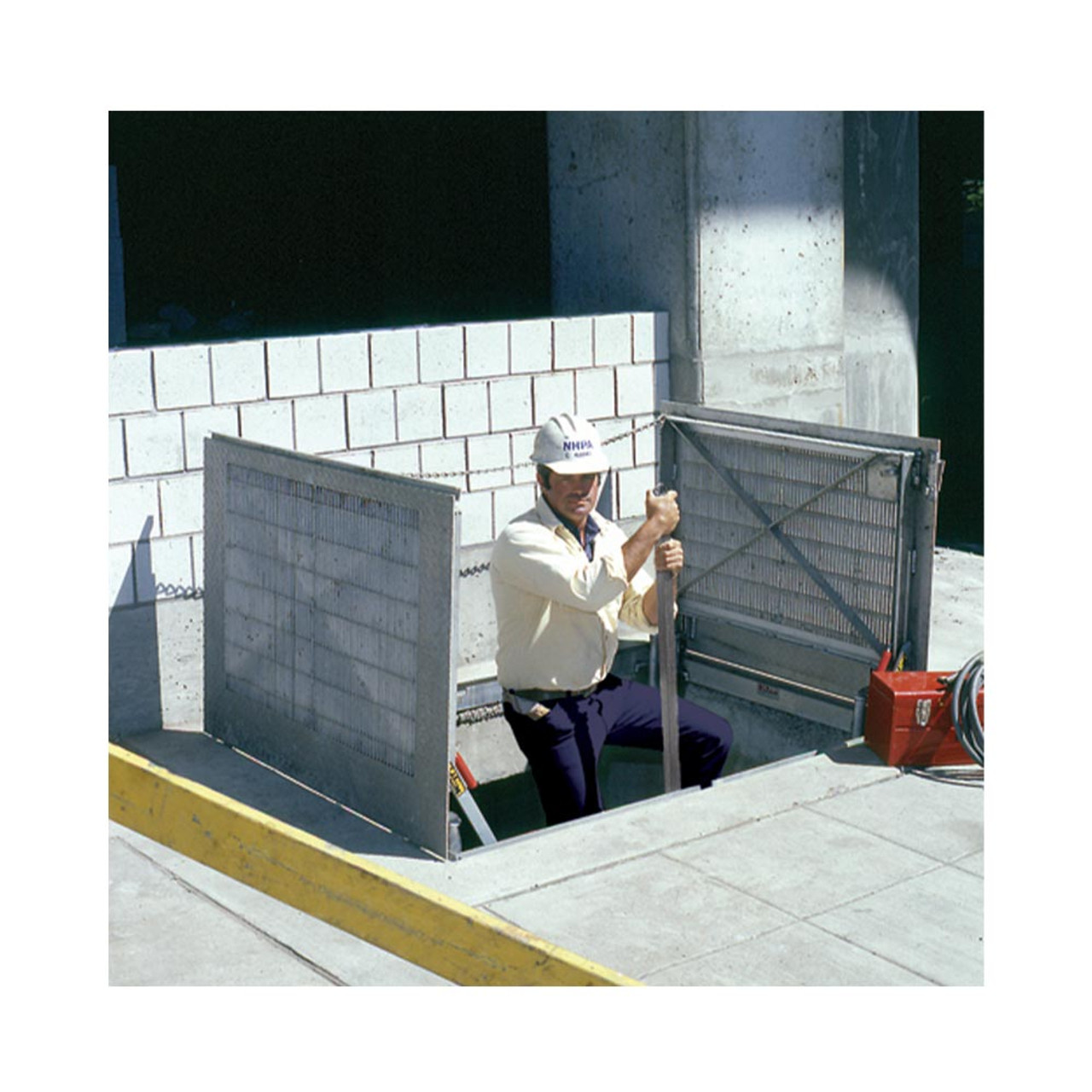

Floor hatches such as BA-JD 48" x 30" Steel Drainage Floor Door – 300 PSF – Double Leaf by Best Access Doors provide assured, safe passage to utilities found between floors and below ground. This steel floor hatch provides excellent durability and value for money, built for external and internal use. Operators are easily granted access, with lift assistance provided by enclosed compression springs, with automatic hold open arms for one-handed operation.
Despite its featherlight design, this model exceeds expectations by featuring a diamond-patterned tread plate that reinforces and supports a 300 PSF live load. This makes it perfect for bustling job sites where efficient space utilization is crucial. BA-JD is an ideal addition to airports, factories, hospitals, warehouses, and other venues where safety is at a premium.
Take a Closer Look at BA-JD
Built-in Drainage Coupling: The frame of BA-JD expertly welds a 1-½" threaded drain coupling channel, preventing water accumulation and enhancing safety.
Diamond Tread Plating: Maintain a safe and orderly worksite with ¼" diamond patterned plating for a strong, assured grip with footwear.
Hassle-Free Access: BA-JD grants easy access to underground spaces with lift assistance provided by enclosed telescopic tubes and automatic hold-open arms.
Load-Bearing Cover: BA-JD's reinforced cover supports a live load of up to 300 psf for more longevity, safety, and access in high-traffic areas.
Highly Durable Construction: BA-JD comprises robust ¼" steel providing exceptional corrosion resistance and durability. Count on BA-JD for years of service with minimal upkeep required.
Expanded Clearance: This model’s double-leaf doors allow more room to move within to maneuver tools and equipment for larger maintenance and installation projects.
Two-Way Access: Count on BA-JD for two-way access with a removable exterior turn handle to maintain a flush fit, reducing the risks of trips or snags. Internally, a fixed turn handle provides easy egress.
Specifications:
- Dimensions: 48” x 30”
- Material: ¼" steel with alkyd base oxide primer
- Cover: Diamond-patterned tread plate reinforced for 300 psf live load
- Frame: Forced channel frame with full anchor welded around perimeter; 1-½" drain coupling welded under the frame for pipe connection to the disposal system
- Latch: Type 316 stainless steel with fixed interior handle; removable exterior turn/lift handle; latch release provided by flush gasketed removable screw plug
- Hinges: Heavy forged stainless-steel hinges with ¼" Type 316 stainless steel hinge pins
- Lift-Assistance: Compression springs enclosed in telescopic tubes; automatic hold-open arms lock the cover in position
- Hardware: All hardware is Type 316 stainless steel
Count on BA-JD 48" x 30" Steel Drainage Floor Door – 300 PSF – Double Leaf by Best Access Doors for regular and consistent access to internal and external applications!
