48" x 48" Floor Door for H20 Loading - Double Leaf

48" x 48" Floor Door for H20 Loading – Double Leaf


Introducing BA-FD-H20-DL 48" x 48" Floor Door for H20 Loading – Double Leaf by Best Access Doors, the ultimate heavy-duty access solution for parking garages, loading docks, industrial facilities, warehouses, and other venues where AASHTO-certified access is required. This heavy-gauge aluminum floor hatch is intended for interior and exterior applications where weather tightness is not a requirement, providing exceptional durability and strength with a 16,000-pound wheel live-load rating.


This model provides peace of mind with lift assistance supplied by stainless steel compression springs, with red vinyl gripped hold open arms for easy 90-degree access with one hand. With ¼" aluminum tread plating, BA-FD-H20-DL provides secure footing for a safer work environment. These specialized floor hatches withstand the weight and impact of vehicles and heavy equipment while maintaining uncompromising access.

Benefit from Secure, Reinforced Access

Diamond Tread Plating: Maintain a safe and orderly worksite with ¼" diamond patterned plating for a strong, assured grip with footwear.

Hassle-Free Access: BA-FD-H20-DL grants easy access to underground spaces with lift assistance provided by enclosed telescopic tubes and automatic hold-open arms.

Streamlined Installations: This model makes installations easier with a 1" integral anchor flange for a stress-free fitting process.

H-20 Load Reinforced Cover: BA-FD-H20-DL's reinforced cover supports a live load of up to 16,000 pounds for more longevity, safety, and access to off-street locations that require efficient access.

Highly Durable Construction: BA-FD-H20-DL comprises robust ¼" steel providing exceptional corrosion resistance and durability. Count on BA-FD-H20-DL for years of service with minimal upkeep required.

Expanded Clearance: This model’s double-leaf doors allow more room to move within to maneuver tools and equipment for larger maintenance and installation projects.

Removable Handle for Flush Fit: BA-FD-H20-DL grants hassle-free access with a removable outside handle and threaded plug. Once the job is complete, just remove the handle to keep things flush.

Note: Interior handles are fixed.

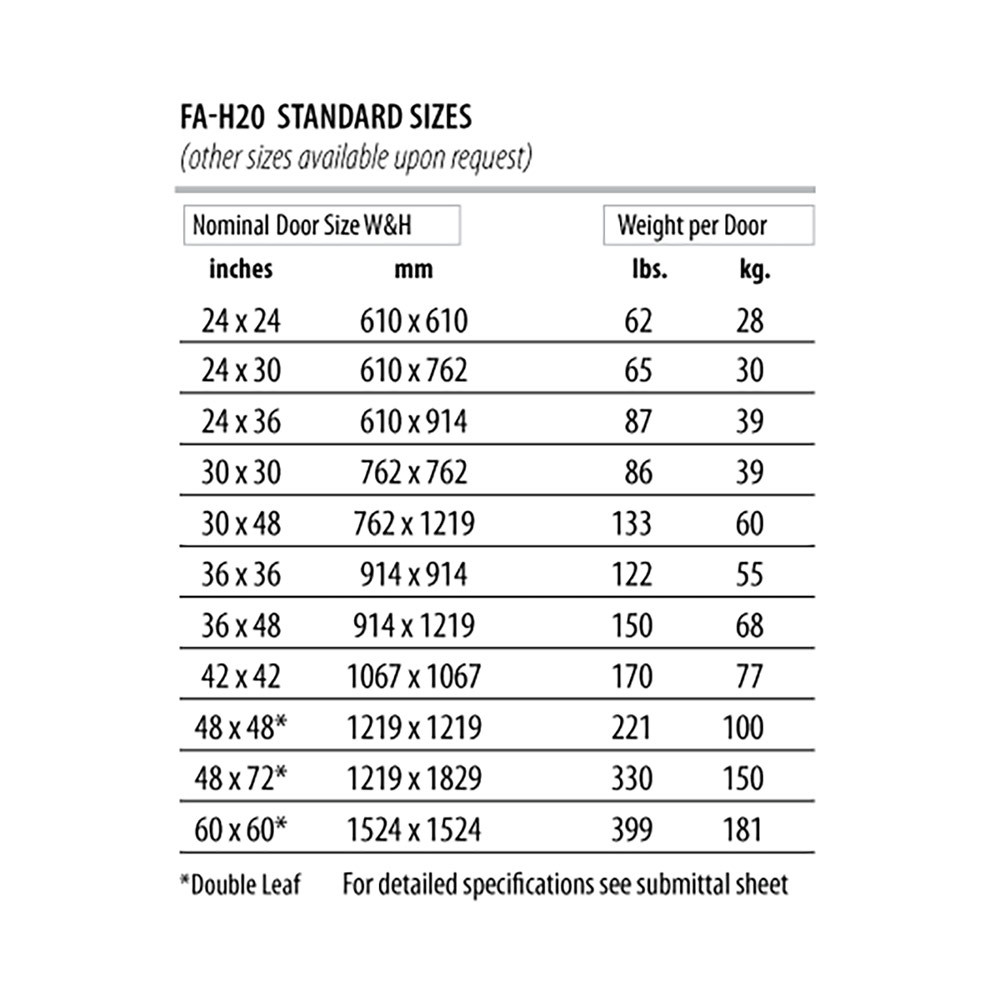

BA-FD-H20-DL is a double-leaf model ranging in dimensions between 48" x 48" to 60" x 60". Our single-leaf model, BA-FD-H20-SL, ranges from 24" x 24" up to and including 42" x 42.

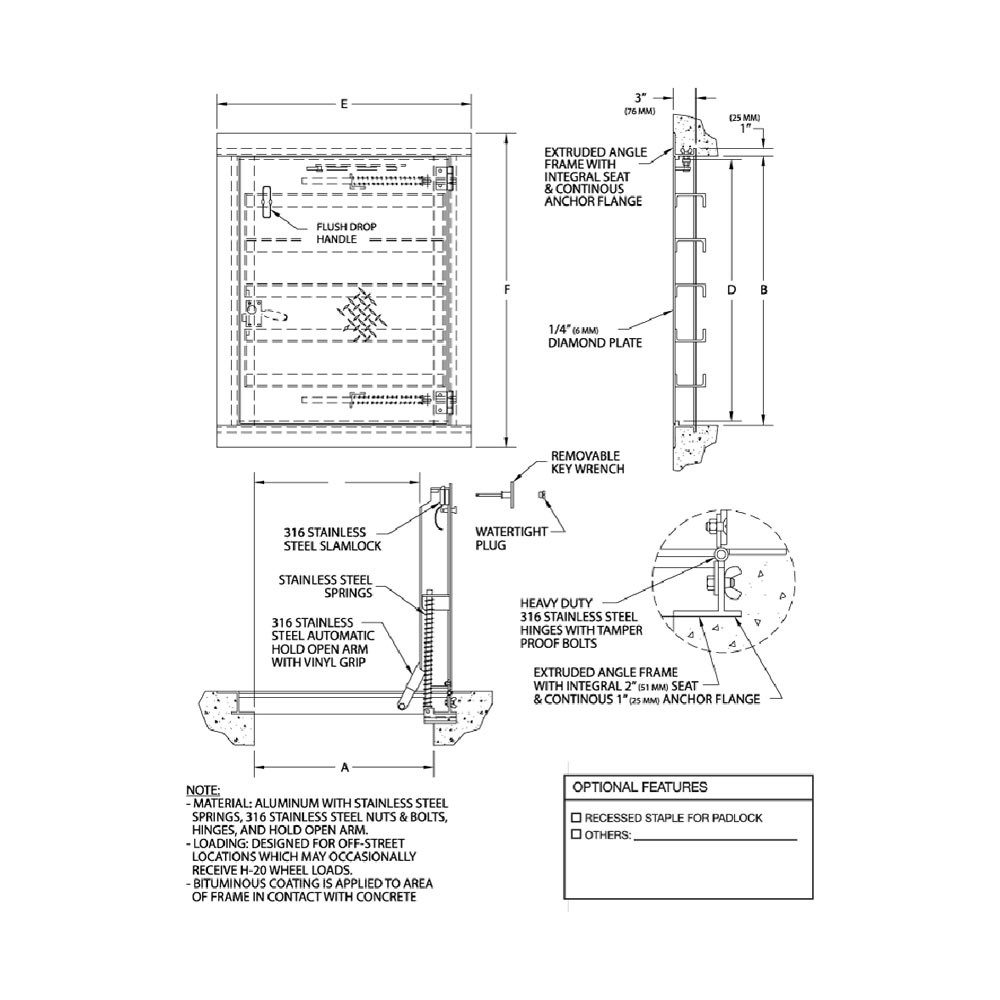

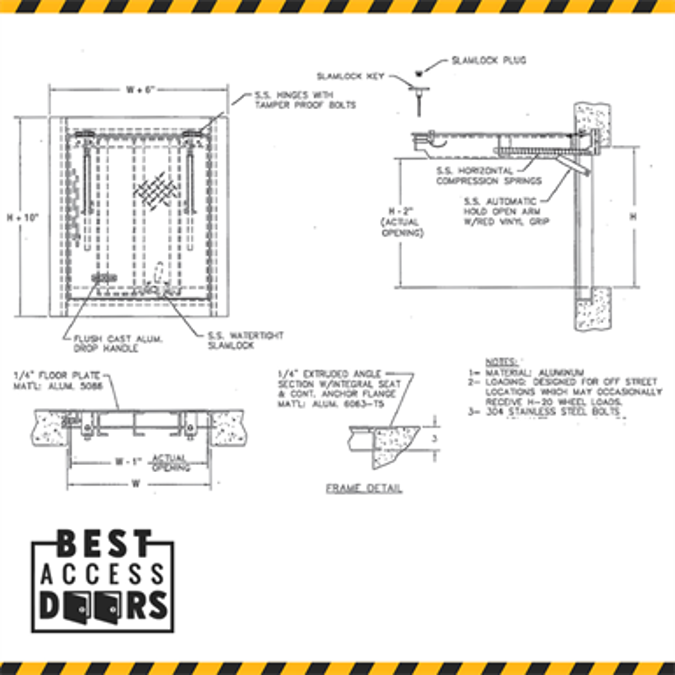

Specifications:

• Dimensions: 48” x 48”
• Material: ¼" mill-finished aluminum with bituminous coating on frame exterior
• Cover: Diamond-patterned tread plate reinforced to meet AASHTO specifications for H-20-44 (16,000 pounds wheel load over 10" x 20" area with 30% added for impact) live load
• Frame: Angle frame fabricated from aluminum extrusion with an integral 1" anchor flange
• Latch: Flush aluminum drop handle, stainless steel slam lock with fixed inside handle; removable outside handle with removable threaded plug
• Hinges: Stainless steel butt hinges with tamperproof stainless-steel bolts and nuts
• Lift-Assistance: Stainless steel compression springs with red vinyl grip hold open arms to keep the cover extended and locked to 90 degrees
• Hardware: All hardware is steel

Maintain a safe and orderly work zone with easy H20 access with the addition of BA-FD-H20-DL 48" x 48" Floor Door for H20 Loading – Double Leaf by Best Access Doors!
