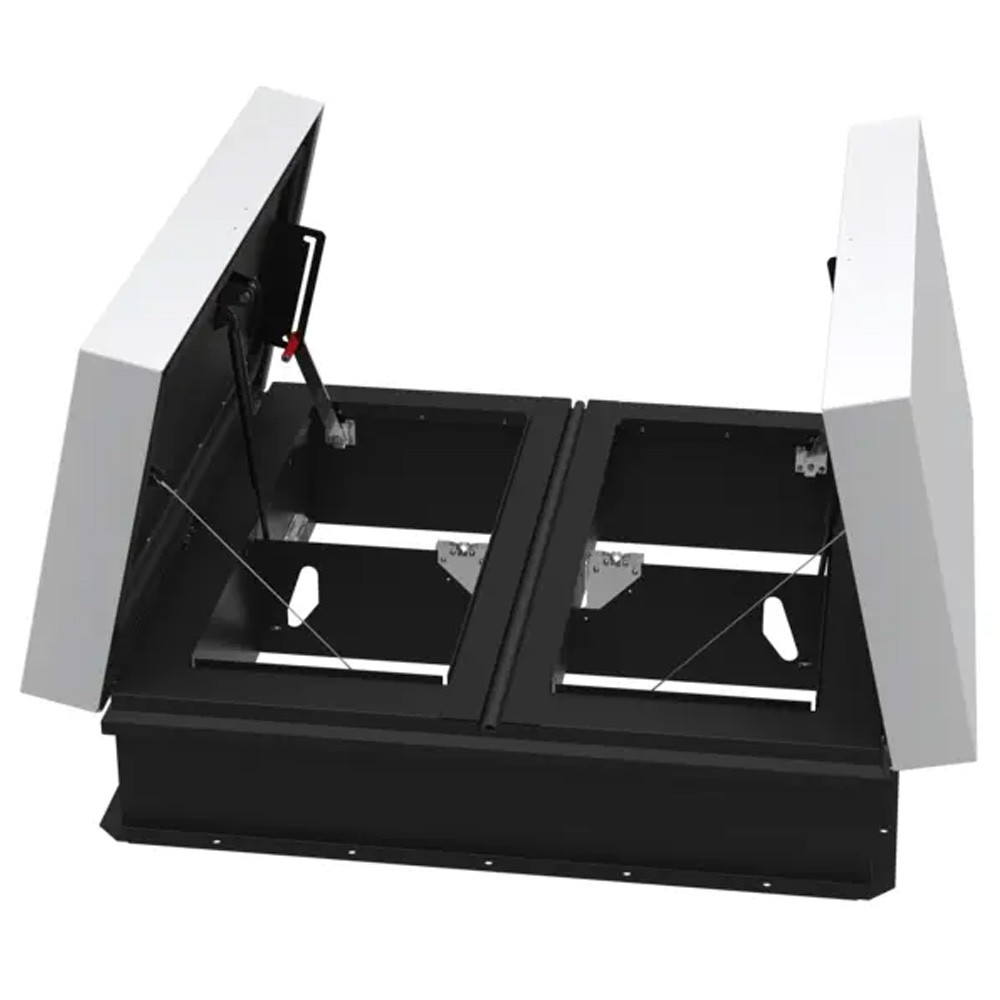

60" x 120" Double Door AcousticMAX Smoke Vent - STC 50 OITC 47

60" x 120" - Double Door AcousticMAX Smoke Vent – STC 50 OITC 47

Are you looking to provide safe, efficient, and reliable ventilation to your buildings but have limited options due to noise and building code requirements? Your search stops at BA-BSVZG-D 60" x 120" Double Door AcousticMAX Smoke Vent – STC 50 OITC 47!

This state-of-the-art solution, optimized by Best Access Doors, provides the highest standard of sound attenuation and noise control while also boasting top-of-the-line automatic ventilation properties. With a melting fusible link, this double-leaf smoke vent springs into action, unlatching for immediate ventilation while providing a point of attack for firefighters.

Get To Know BA-BSVZG-D!

Superior Acoustical Dampening: With an STC rating of 50 and OITC of 47, BA-BSVYG-D offers substantial sound isolation, significantly reducing the sound of loud speech, music, and mechanical noises with the use of sound mats in its cover and curb.

Automated Ventilation: BA-BSVYG-D features a positive releasing latch, activated by a rigorously tested UL-listed fusible link, which melts at temperatures over 165°F. Once the fuse melts, you can count on BA-BSVYG-D's covers to release, expelling flames, fumes, and toxic gases.

Note: Alternate fusible link temperatures are available; see below.

Weatherproofed Construction: BA-BSVZG-D has EPDM rubber gaskets permanently adhered to its cover, providing a tight seal while leaving the elements out of your spaces. BA-BSVZG-D has mineral wool insulation within its cover for enhanced thermal resistance (R-14) and reduced energy consumption.

Note: 2" Polyisocyanurate (PIR) insulation (R-12) is available as an alternative; please contact our staff to request.

Double-Leaf Design for More Venting Area: BA-BSVZG-D boasts an extra leaf for an expanded area and maximum crucial ventilation in a fire.

EZ Tab for Easy Mounting: BA-BSVZG-D is a single-wall curb hatch with a mounting flange with EZ tabs that make installations quicker and hassle-free.

Note: Double wall, curb mount, and double wall with no counterflashing alternatives are available; please contact our staff to request.

BA-BSVZG-D is on the cutting edge of innovation with a melting fusible link. Best Access Doors is proud to offer a range of melting points to suit your needs. The alternatives to the standard 165°F link melt at:

• 212°F
• 280°F
• 350°F
• 360°F
• 450°F

BA-BSVZG-D is either manually or electronically opened for regular venting. This model opens for manual venting with zinc-plated rotary latches, standard on all models. For electronically opening venting, you will have the options of:

• 24VDC/24VAC system
• 110VAC/240VAC system
• Linear Actuator system (note: this option voids BA-BSVZG-D 's UL listing)

Please contact our team to identify your preference.

For closing, alternatives include a:

• Manual wench
• Linear Actuator system (note: this option voids BA-BSVZG-D 's UL listing)

This model's standard zinc-plated steel hold-open arms provide dependable and reliable assistance. However, you can replace them for:

• Factory Mutual (FM) labeled arms
• Door position sensors
• Burglar bars

Designed with precision and innovation, this double-door acoustic vent is engineered to minimize noise transmission while providing smooth and uncompromising ventilation.

Specifications:

• Dimensions: 60” x 120”
• Material: 12-gauge galvannealed steel
• Cover: Formed aluminum cover internally reinforced for 40 psf live load
• Curb: Single wall curb with EZ tab counterflashing and mounting flange
• Gasket: Extruded EPDM adhesive-backed gasket seal, continuous around cover
• Insulation: Mineral wool with sound mat in cover and curb (R-14)
• Hinges: Zinc-plated steel tamper-proof
• Latch: Zinc-plated steel rotary latch holds covers closed against 90psf wind uplift; opens manually with external and internal pull cables; opens automatically with a variable fusible link
• Lift-Assistance: Gas spring with damper for lift-assistance, opens cover against 10psf; automatic hold-open arms lock cover in place
• Finish: High reflective white exterior cover with black interior liner and black curb

Trust in BA-BSVZG-D 60" x 120" Double Door AcousticMAX Smoke Vent – STC 50 OITC 47 by Best Access Doors for cutting-edge acoustic solutions that create quieter and more comfortable environments.
