BA-FRI-DF
|
|
|
Description

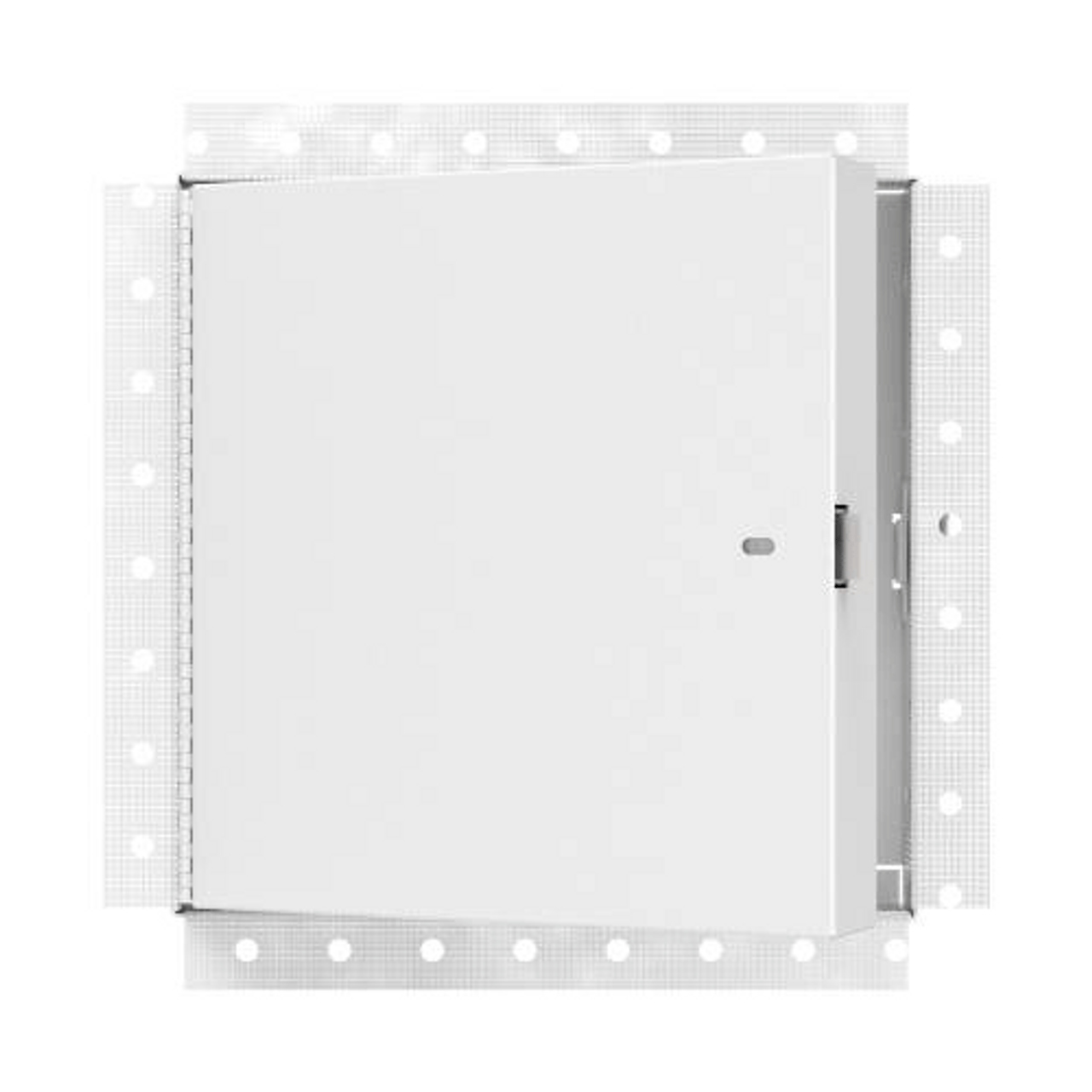

16" x 16" Fire Rated Access Panel Insulated with Mud In Flange
Achieving a flawless drywall finish is now easier than ever with the BA-FRI-DF 16" x 16" Fire-Rated Access Panel Insulated - Mud in Flange. This innovative panel, specifically designed for fire-rated walls, optimizes the drywall hanging process for both commercial and residential projects, such as:
- Concealing access points in fire-rated walls and ceilings for electrical, plumbing, mechanical, and HVAC systems.
- Providing discreet access panels in maintenance areas, utility closets, and other fire-rated spaces.
- Creating fire-rated inspection hatches in elevator shafts, electrical rooms, and other restricted areas.
Crafted from 16-gauge steel by Best Access Doors, the BA-FRI-DF boasts a 2-hour fire rating, exceeding stringent safety requirements. Exposed, perforated flanges simplify the taping and mudding process, ensuring a seamless finish where only the access panel door remains visible.
Why Choose BA-FRI-DF?
Simplified Mudding and Finishing: The perforated flanges readily accept drywall mud and tape for effortless application, precise placement, and a professional finish.
Superior Fire Protection: BA-FRI-DF is UL-certified for fire resistance, achieving a 2-hour rating on vertical wall assemblies.
Self-Latching Convenience: Featuring a spring mechanism, the BA-FRI-DF ensures hands-free operation, complying with NFPA 80 standards.
Enhanced Installation Control: The BA-FRI-DF offers greater control over exposed joints for integration during drywall installation. Additionally, the flanges provide a guiding template for installation within existing structures.
Concealed Aesthetics: The perforated flanges contribute to a virtually invisible finish, with only the access panel door visible upon completion.
Improved Thermal Performance: Integrated mineral wool insulation enhances your application's fire rating and overall thermal properties.
LEED v4 Contribution: The BA-FRI-DF can contribute towards achieving LEED certification, potentially leading to tax credits and other benefits.
Customizable Finish: Standard models arrive with a high-quality white powder coat primer. However, the panel door can be textured, wallpapered, or painted to match your desired decor seamlessly.
Specifications:
- Dimensions: 16" x 16"
- Material: 16-gauge cold rolled steel door and 20-gauge galvanneal steel frame
- Hinge: Continuous piano hinge
- Locking Mechanism: Self-latching tool-key operated slam and ring-operated slam latch; both included
- Flange: 22-gauge 1-½" exposed, perforated flanges of cold rolled steel
- Frame: 2-½" in depth made of cold rolled steel
- Rough Opening: Door sizes + ¼" + 6 mm
- Finish: High-quality white powder coat primer
Note: Masonry anchors included - Packaging: Individually wrapped, 1 door per box
Ensure seamless integration and fire protection in your fire-rated walls with the 16" x 16" Fire-Rated Access Panel Insulated - Mud in Flange by Best Access Doors.
