BA-FD2CI
|
|
Description

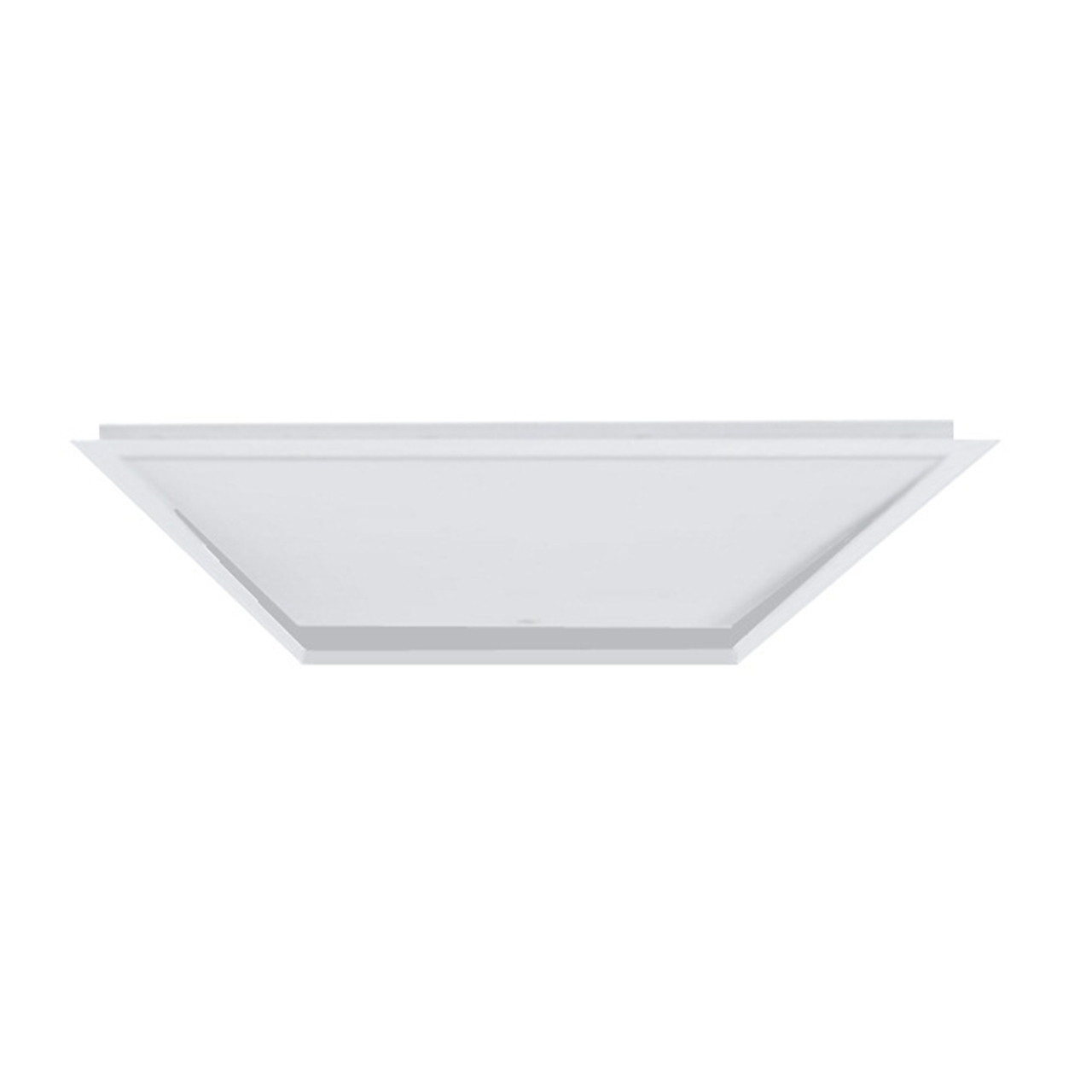

BA-FD2CI 2-Hour Fire-Rated Access Panel for Ceilings with Upward Swinging Door
Where safe and convenient access to ceilings is required, Best Access Doors BA-FD2CI 24" x 36" - 2-Hour Fire-Rated Access Panel for Ceilings with Upward Swinging Door is here to deliver.
BA-FD2CI has an innovative design with a continuous piano hinge that allows an easy, space-saving upward swinging panel door that opens to 90 degrees.
BA-FD2CI's leaf panel contains 1 ½" thick high-temperature insulation material reinforced by a 22-gauge steel liner for trouble-free, practical access to your fire-rated ceilings.
Take a Closer Look at BA-FD2CI
2-Hour Fire-Rating: BA-FD2CI has 1-½" thick high-temperature insulation with 22–gauge steel lining, factory inspected by Warnock Hersey.
Upward Swinging Door: BA-FD2CI leaf panel is attached by a durable continuous piano hinge for a space-saving upward swinging panel door.
Self-Closing, Self-Latching: BA-FD2CI is NFPA compliant, with a dual-purpose gravity-assisted door panel closer that also locks it into place at a 90-degree angle.
Galvanized Steel Construction: BA- FD2CI is made entirely of durable galvanized steel, with a zinc coating for greater corrosion resistance and less maintenance required.
BA-FD2CI offers you maximum convenience with an automatic, gravity-assisted self-closing door and latch, making it NFPA 80 compliant. This unit allows two-way access with a flush-mounted latch and an internal release mechanism on all standard models.
Standard models are equipped with flush 1/8" Allen key with alternatives such as a;
- Knurled (turn) knob
- Mortise lock and cylinder
- Non-locking handle
Specifications:
- Dimensions: 24" x 36”
- Frame: 16-gauge galvannealed steel, with 7/8" trim and 3-1/2" depth.
- Flange: 7/8" wide for an overall width of 1-1/2"
- Door: 16-gauge face with 22-gauge liner and 1-1/2" high-temperature insulation
- Hinge: Concealed continuous piano hinge
- Lock and Latch: 1/4" flush Allen key with a self-latching mechanism
- Material: Satin-finished galvannealed steel with high-quality white powder coat finish
Fortify your properties with the BA-FD2CI 24" x 36" - 2-Hour Fire-Rated Access Panel for Ceilings with Upward Swinging Door.
