BA-S-90
|
|
Description

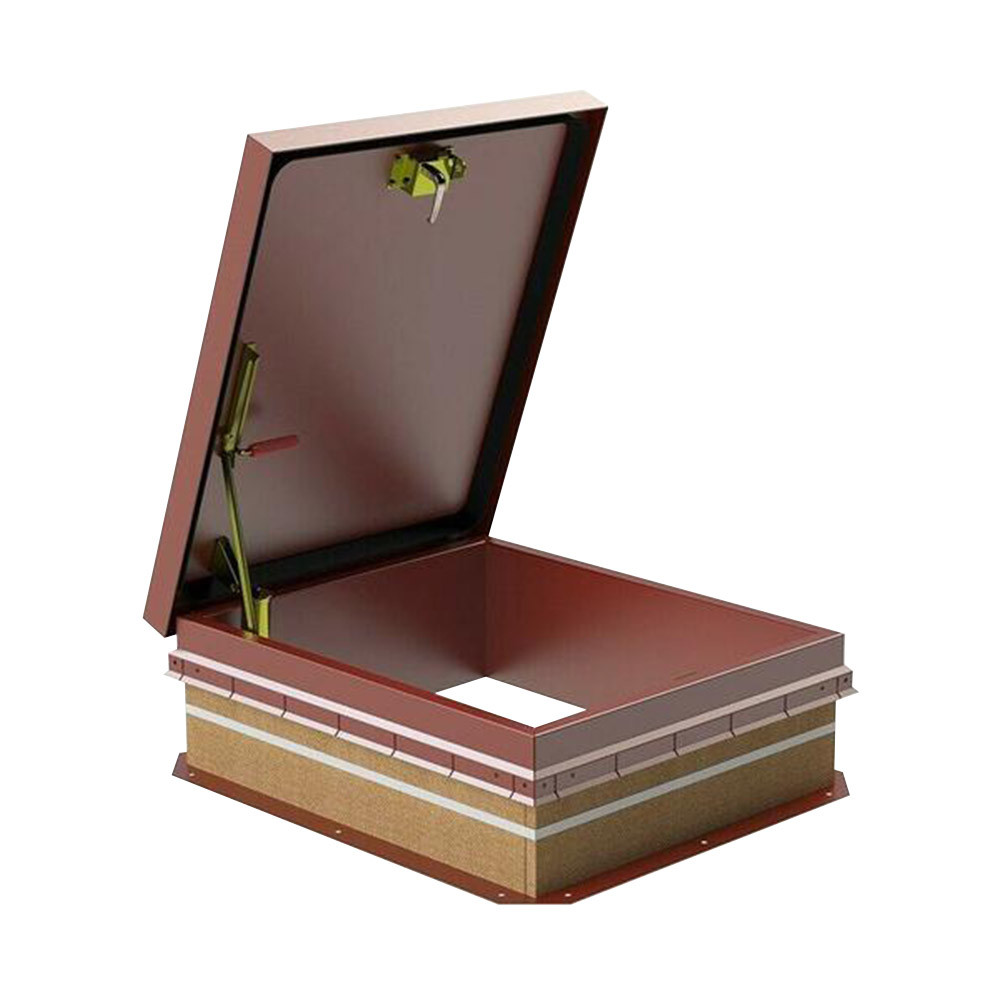

36" x 30" - Ladder Roof Hatch – Stainless Steel
Searching for durable and reliable access to rooftops that will stand the test of time? Look no further than BA-S-90 36" x 30" Ladder Roof Hatch – Stainless Steel, the ultimate solution for ladder access! BA-S-90 optimized by Best Access Doors, provides a smooth, lift-assisted opening every time, with powerful compression springs for easy openings and one-handed operation. Count on BA-S-90's sturdy fully welded and weather sealed curb to hold up against the harshest conditions; be it rain, sleet, rain, hail, snow, or sun rays, BA-S-90 will perform!
Why Choose BA-S-90?
Efficient Rooftop Entry: BA-S-90 grants easy access to rooftops with the use of interior and exterior turn handles and powerful compression springs with automatic locking arms, ensuring easy access every time.
Safer Ladder Access: BA-S-90 securely fastens to commercial, residential, and industrial rooftops, ensuring an extremely sturdy fit and a design optimized for safe ladder access. Its positive latching mechanism prevents unauthorized access.
Easier Installations: With a 3-½" mounting flange and 7/8" predrilled holes, BA-S-90 easily and securely fastens to roof decks with a streamlined process.
Weatherproofed Construction: BA-S-90 has EPDM rubber gaskets permanently adhered to its cover, providing a tight seal while leaving the elements out of your spaces. BA-S-90's construction leaves it highly resistant to corrosion from elemental exposure.
Structural Reinforcement: BA-S-90 provides live-load support of up to 40 pounds per square foot of load-bearing support to your rooftops.
Optimized Energy Efficiency: BA-S-90 has 1" thick fiberboard insulation within its curb, reinforced by 1" thick fiberglass within its cover for enhanced thermal resistance and excellent insulation.
Specifications:
- Dimensions: 36” x 30”
- Material: 14-gauge type 304 stainless steel
- Cover: Brake-formed hollow-metal design with 1" concealed fiberglass insulation, 3" beaded, overlapping flange, fully welded at the corners, internally reinforced for 40 psf live load
- Curb: 12" in height with integral cap-flashing, 1" fiberboard insulation, fully welded at corners, 3-½" mounting flange with 7/16" holes
- Gasket: Extruded EPDM rubber gasket permanently adhered to cover
- Hinges: Heavy-duty pintle hinges with 3/8" Type 316 hinge pins
- Latch: Slam latch with exterior and interior turn handles and padlock hasps
- Lift-Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release
- Finish: Type 304 stainless steel with mill finish and electrochemical passivation of welds
- Hardware: Aluminum – Engineered composite compression spring tubes with steel compression springs packed in grease; Type 316 Stainless steel hinges; all other hardware zinc-plated
Enhance your ladder access rooftop experience with BA-S-90 36" x 30" Ladder Roof Hatch – Stainless Steel by Best Access Doors!
