BA-RVFV
|
|
Description
BA-RVFV

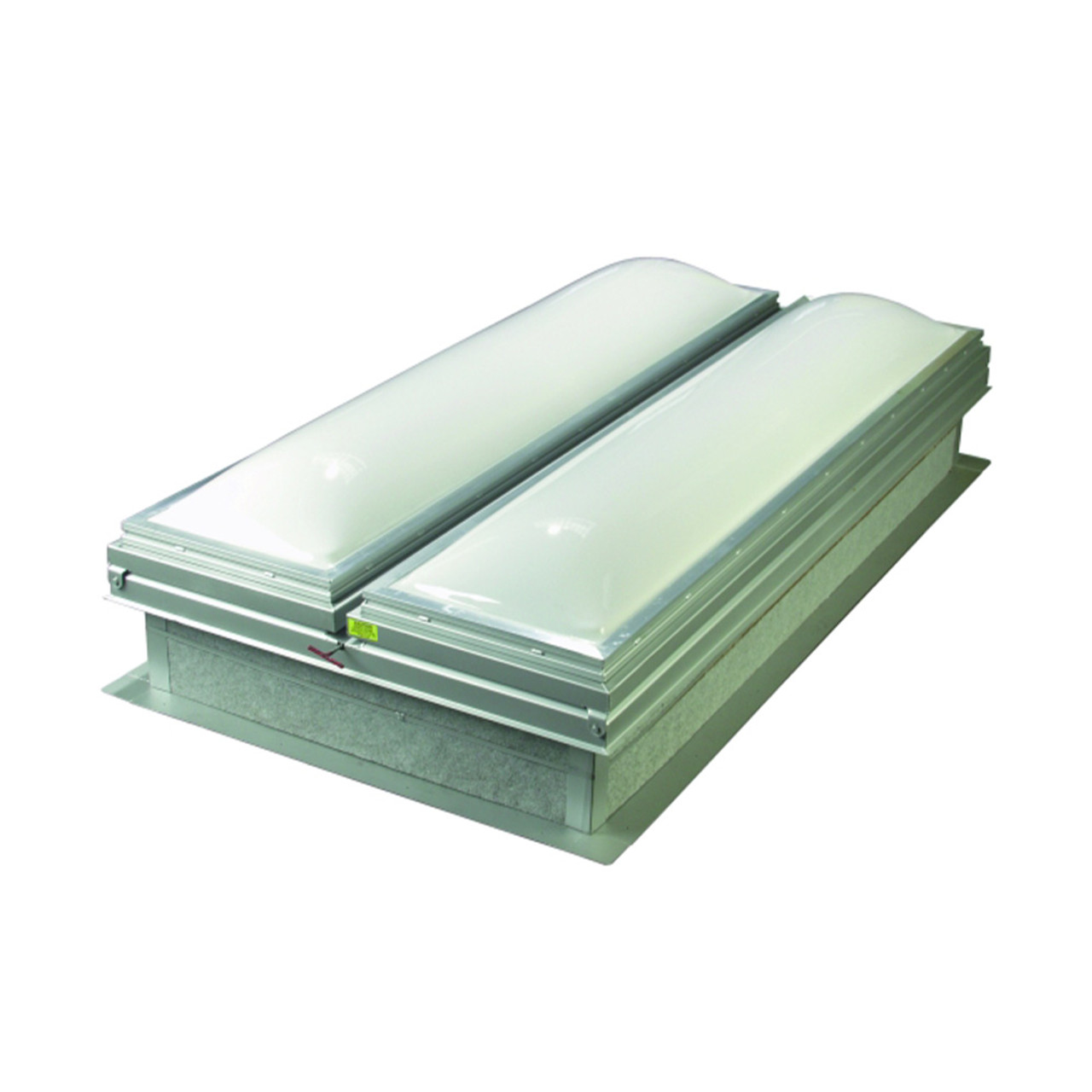

60" x 96" - Domed Double Smoke Vent – Steel Curb & Alum. Cover
By including BA-RVFV 60" x 96" - Domed Double Smoke Vent – Steel Curb & Aluminum Cover by Best Access Doors, you will be taking a large step toward enhancing the safety profile of your buildings. This high-quality, rugged, yet aesthetic smoke vent provides superior smoke control and ventilation in the event of a blaze. BA-RVFV features a fusible link that will activate with exposure to flames or high temperatures rigorously tested, certified, and listed by industry leaders UL.
BA-RVFV maximizes your value with 1" thick, high-quality PIR insulation, which boasts an R-value of 6 for increased thermal resistance and reduced energy loss. And with domed acrylic skylights, BA-RVFV is the ideal solution for dark and dreary workplaces, allowing more natural sunlight for better well-being and reduced lighting costs.
Why is BA-RVFV the Perfect Choice?
Automatic Opening: BA-RVFV's innovative design includes a UL-listed fusible link that will activate at temperatures over 165 degrees, automatically engaging and opening in the event of a fire.
Illuminates Dark Workplaces: BA-RVFV features domed acrylic glass panels to invite more natural light into the workplace for better visibility and enhanced well-being.
Air and Weathertight: This model features bulb neoprene gaskets for an air and weathertight seal for enhanced protection against dust, debris, draft airflow, and heat loss when it matters most.
Maximized Venting Area: We have designed BA-RVFV with double-leaf doors to maximize its ventilative properties for better protection in the case of a fire.
Enhanced Energy Efficiency: BA-RVFV offers enhanced energy efficiency with 1" PIR insulation for better thermal resistance and an R-value of 6.
Extremely Durable Construction: BA-RVFV combines the best of both worlds, comprising aluminum's lightweight and anti-corrosive properties and the rugged resistance to wear and tear of steel.
With its highly aesthetic design and exceptional safety features, BA-RVFV offers you versatility in applications ranging from commercial buildings to recreational venues, educational and healthcare facilities, and much more!

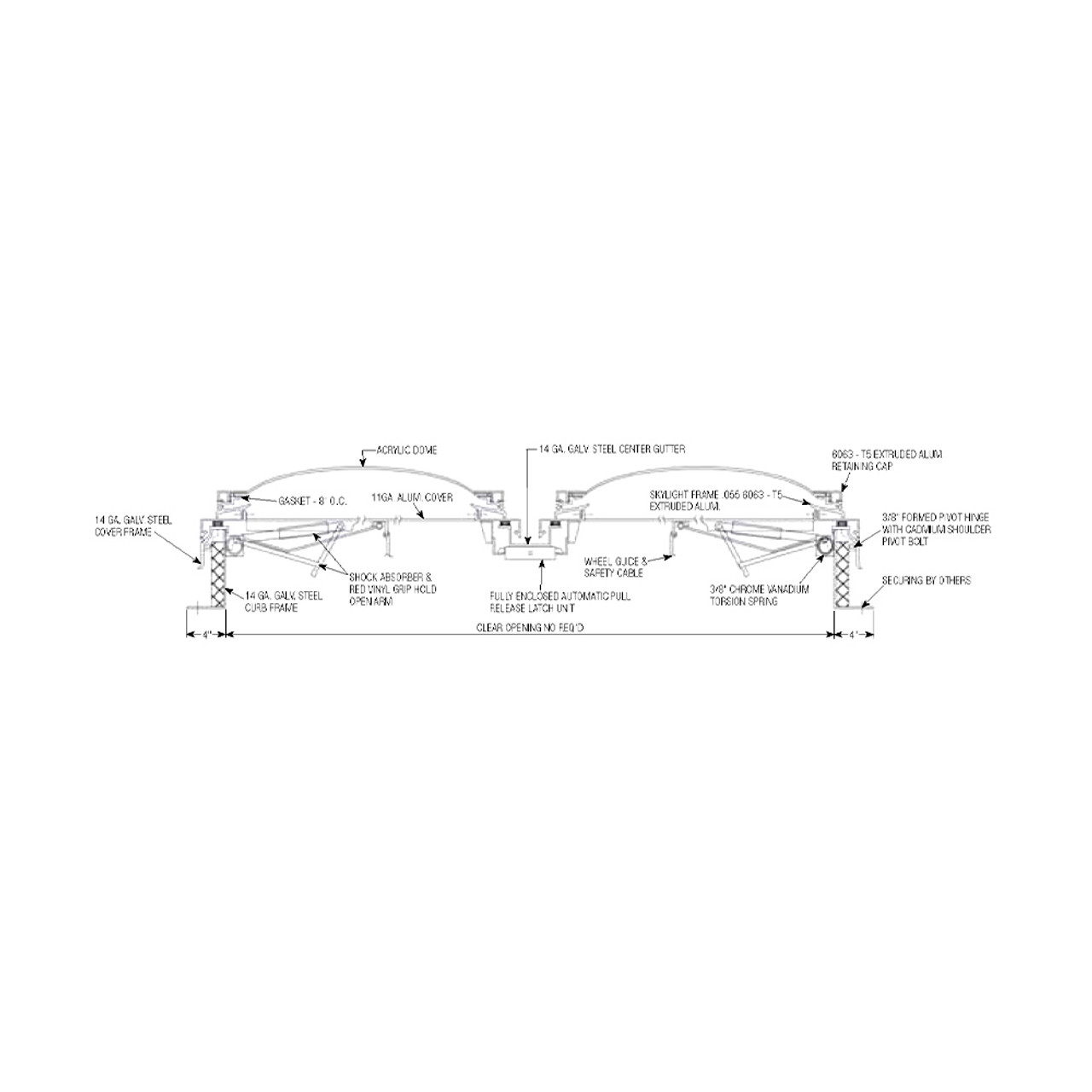

Specifications:
- Dimensions: 60" x 96”
- Cover: 14-gauge aluminum with 18-gauge steel inside liner with acrylic dome
- Insulation: 1" PIR (R-6) Insulation in curb and cover
- Gaskets: Bulb neoprene door gaskets
- Opening: Automatic torsion springs activated by 165-degree fusible link
Note: Clear zinc-plated automatic locking hold open arms included - Curb: 11-gauge aluminum single wall curb with diamond grip to secure roof membrane
- Hinge: Heavy-duty aluminum hinge with bolt pin
- Door Latch: Fully enclosed automatic pull release latch
- Material: 14-gauge galvannealed steel with extruded aluminum
Enjoy peace of mind, increased energy efficiency, and more sunlight by adding BA-RVFV 60" x 96" - Domed Double Smoke Vent – Steel Curb & Aluminum Cover by Best Access Doors.
