14" x 14" BA-FW-5050-ACF Acoustical Fire-Rated Insulated Access Door

The 14" x 14" BA-FW-5050-ACF Acoustical Fire-Rated Insulated Access Door is designed for commercial wall assemblies that require both fire protection and sound control.

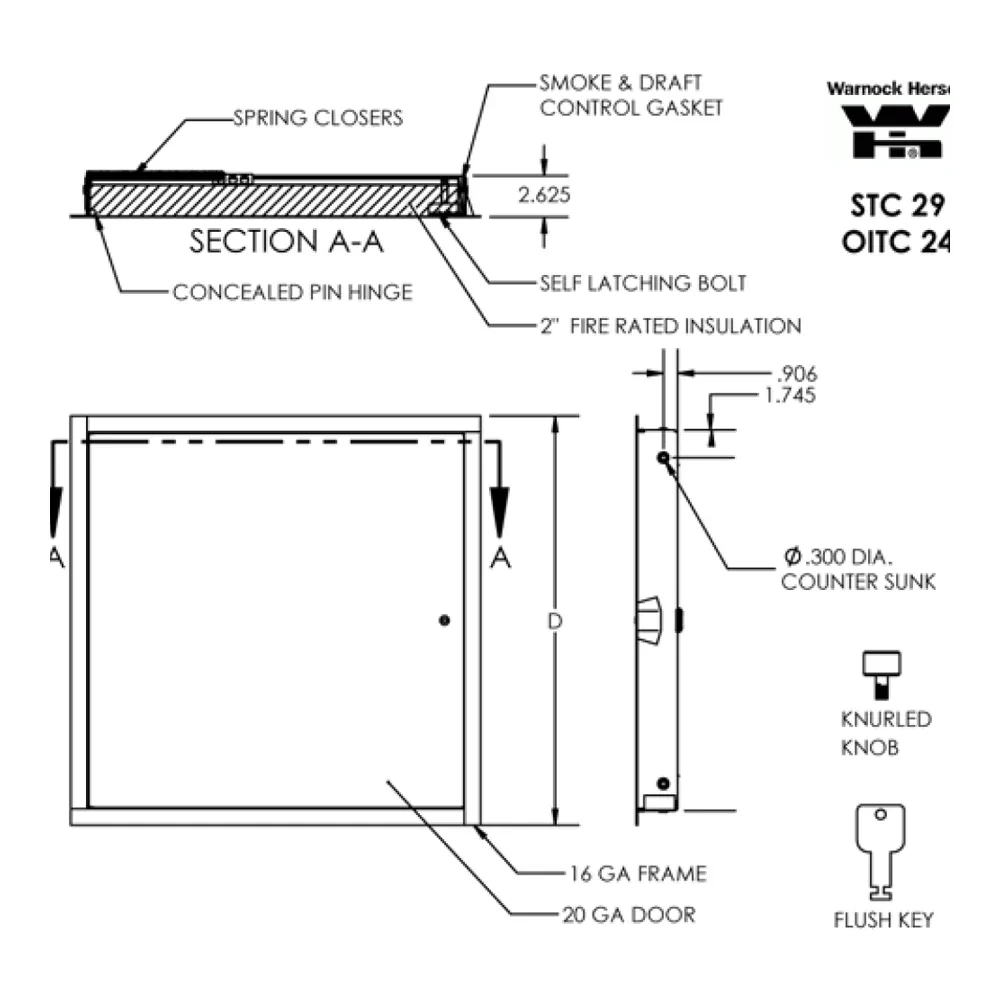

Built with a 20-gauge steel door on a 16-gauge mounting frame and filled with 2" of fire-rated insulation, it provides a Warnock Hersey fire rating of up to 1.5 hours while also helping reduce sound transmission through the opening.

Tested to STC 29 and OITC 24 for sound, this vertical-installation door suits demanding interior walls in institutional and commercial spaces. Fire-rated access doors do not stop fires from starting; they help slow down the spread of a fire for a limited period.

Why Choose 14" x 14" BA-FW-5050-ACF Acoustical Fire-Rated Insulated Access Door?

• Certified Fire Rating: Warnock Hersey fire-rated up to 1.5 hours and certified to UL 10B and CAN/ULC S104, with a maximum temperature rise of 250°C (482°F) after 30 minutes, so the opening maintains the rating of the wall.
• Acoustical Performance: Tested for sound transmission to ASTM E413 STC 29 and ASTM E1332 OITC 24, helping minimize sound transmission through the access opening, supporting quieter commercial environments.
• Insulated Construction: A door filled with 2" of fire-rated insulation intended for wall assemblies where both fire resistance and temperature-rise performance are important.
• Rigid Steel Build: A 20-gauge steel door on a 16-gauge mounting frame with a 1" mounting flange stands up to repeated service access.
• Self-Latching Operation: A universal self-latching bolt that automatically secures the door after use, supporting code-compliant operation and reducing the risk of accidental openings.
• Field-Ready Finish: Ships with a baked white prime coat suitable for field painting to match the surrounding wall.

Not sure if the BA-FW-5050-ACF is the right fit for your rated and acoustic wall opening? Compare our fire-rated and sound rated models or talk to our team if you have any questions.

Key Product Specifications

• Door Size: 14" x 14"
• Weight: 1 to 84.6 lbs (varies by size)
• Material: 20-gauge steel door, 16-gauge mounting frame
• Insulation: 2" thick fire-rated insulation
• Flange: 1" wide
• Acoustic Rating: ASTM E413 STC 29, ASTM E1332 OITC 24
• Fire Rating: Warnock Hersey up to1.5 hours, UL10B, CAN/ULC S104, NFPA80, temperature rise 250°C after 30 minutes
• Installation: Vertical installation only
• Gasket: Smoke and draft control gasket
• Latch: Universal self-latching bolt (knurled knob or flush key)
• Finish: Baked white prime coat, ready for field painting
• Material Options: Steel or stainless steel
• Standard Compliances: UL10B, CAN/ULC S104, NFPA80

What Comes Standard and What Can Be Configured?

Every BA-FW-5050-ACF ships with the following as standard:

• 20-gauge steel door and 16-gauge mounting frame
• 2" thick fire-rated insulation
• Smoke and draft control gasket
• 1" wide flange
• Universal self-latching bolt with knurled knob or flush key
• Baked white prime coat finish

The following options must be specified at the time of order and are not included as standard:

• Stainless steel construction
• Mortise cylinder lock preparation (for master keying)

Looking for a special configuration? Our complete range of standard and custom access solutions makes it easy to source the right product for your project.

What Should You Know About Rough Opening and Installation Requirements?

Required Rough Opening

The BA-FW-5050-ACF wall opening quals the W + 3/8” (9 mm). For instance, a nominal 24" × 24" door requires a wall opening 24?" wide.

Always verify the rough opening dimensions against the approved submittal drawing before framing to ensure proper fit and rated performance.

Compatible Applications

This door is designed for fire-rated interior walls where heat transmission and sound control are factors. Typical uses include:

• Educational facilities where quieter learning environments are important.
• Hotel and multifamily demising walls requiring both fire protection and acoustic separation.
• Broadcast, performance, and conference facilities with acoustically sensitive spaces.

Installation Notes

• Install vertically only; this model is not rated for horizontal or ceiling use.
• Install in a fire-rated wall assembly consistent with the door's label.
• The self-latching bolt supports code-required closure.
• The baked white prime coat is suitable for field painting after installation.

Looking for more installation guidance? Visit our installation tutorial page for best practices when installing fire-rated access panels.

Who Specifies BA-FW-5050-ACF and Where Is It Used?

The BA-FW-5050-ACF is typically specified by architects, acoustical consultants, mechanical subcontractors, and facility managers who need a rated wall access door that also controls sound.

Common applications include:

• Hospitals and healthcare facilities - rated, quiet access in clinical areas
• Hotels and multifamily buildings - rated wall access between occupied spaces
• Schools and universities - rated partitions where noise control matters
• Broadcast, performance, and conference spaces - rated acoustic walls
• Commercial offices - rated demising walls with sound requirements

Looking to get more value from every order? Join Pro Club, a membership program built for contractors and facility professionals who regularly purchase access solutions. Members receive exclusive pricing, priority customer support, extended return periods, and member-only resources that make purchasing and project management more efficient.

Frequently Asked Questions About Acoustical Fire-Rated Access Doors

What do STC 29 and OITC 24 mean?

They are sound-transmission ratings measured under ASTM E90. Higher numbers indicate greater resistance to sound passing through the assembly; these ratings describe how the door performs acoustically at the opening.

What does the fire rating cover?

The door is Warnock Hersey fire-rated up to 1.5 hours and certified to UL 10B and CAN/ULC S104, with a maximum 250°C temperature rise after 30 minutes. Fire-rated access doors do not stop fires from starting; they help slow down the spread of a fire for a limited period.

Why is this door vertical-installation only?

Its fire and acoustic performance were tested in a vertical wall orientation, so it should be installed vertically to perform as rated. For ceilings, specify a door tested for that application.

Can it be prepared for master keying?

Yes. Mortise cylinder lock preparation for master keying can be added and must be specified at the time of order.

Why buy fire-rated access doors from Best Access Doors instead of a general marketplace?

Best Access Doors specializes exclusively in access doors and panels, so you get direct access to product specialists who can verify fire ratings, acoustic ratings, and sizing for your specific assembly.

Get Rated, Sound-Control Access for Your Project

Specify the right fire-rated acoustic access door for your project. Call us at +1-888-327-5471 for help selecting the correct size, fire rating, acoustic performance, and hardware options. You can also request a quote, or explore our custom-sized access doors if your project requires non-standard dimensions.
