24? x 70? BA-EH-R High-Profile Tile Roof Flashing Kit for Deck Mounted Skylights
The 24? x 70? BA-EH-R High-Profile Tile Roof Flashing Kit for Deck Mounted Skylights provides a watertight connection between deck-mounted skylights and high-profile roof coverings up to 3 ½ inches deep, including concrete/clay tiles and corrugated metal sheeting. Manufactured from aluminum finished in RAL 7022 powder polyester coating to match unit cladding, the kit features an extended 210 mm bottom apron with a butyl adhesive strip for a secure fit on wavy roof profiles.
Integrated side-sealing channels with factory-installed sponge seals block windblown rain, dust, and snow, while a built-in weep flap channels internal condensation away from the roof frame.
Why Choose 24? x 70? BA-EH-R High-Profile Tile Roof Flashing Kit for Deck Mounted Skylights?
Shields your interior from water damage by routing driving rain safely off your roof.
Blends seamlessly into flat shingles or slate without ugly, raised edges.
Tough, rust-proof metal won't crack, peel, or warp under harsh weather.
Satisfies strict installation rules to keep your skylight's leak-proof coverage valid.
Comes with every required piece for a smooth, single-trip installation.
Need help confirming whether the BA-EH-R is a good fit for your project? Contact our product specialists to verify its dimensions and usual applications before ordering.
What Are the Key Product Specifications for the BA-EH-R?
Flashing Size: 24? x 70?
Type: High-profile flashing for deck-mounted skylights
Material & Finish: Aluminum with powder polyester coating (RAL 7022 dark brown/gray)
Compatible Roofing: High-profiled tiles and corrugated metal sheeting (up to 3 ½" profile depth)
Weather Seals: Extended 210 mm bottom apron with butyl adhesive strip; side sponge seals
Roof Pitch: 15 to 90 degrees
Condensation Control: Integrated weep flap for drainage
Need flashing for a different roof covering or skylight? Speak with a product specialist to double-check if the BA-EH-R is the right fit for your project before you place your order.
What to Know About Installation Requirements?
Fitting the Flashing
The BA-EH-R fits around deck-mounted skylights and integrates into your roof and underlayment. Before installing, make sure the flashing matches your skylight, roof slope, and roofing material. Use an ice and water shield with the flashing for a fully leak-proof seal.
Installation Notes
The BA-EH-R kit mounts directly around deck-mounted skylights to integrate seamlessly with surrounding tile or corrugated roofing.

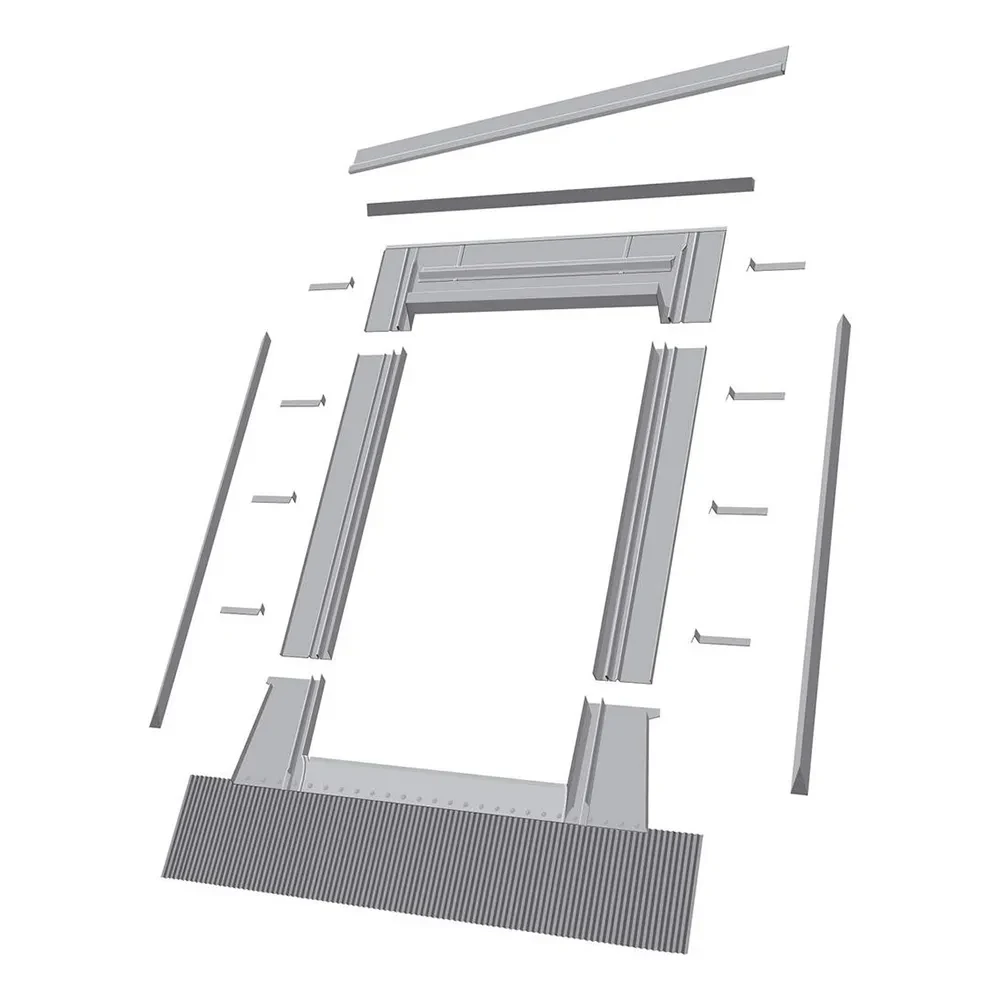

Key Component Assembly:
Upper Drainage Gutter: Installed above the top section to divert water running down the roof pitch away from the window frame.
Side Channels & Sponge Seals: Positioned along the unit sides to block debris and wind-driven rain from entering beneath the tiles.
Bottom Apron 210 mm: Molded over high-profile tiles or corrugated ridges; secured with the factory butyl tape strip.
Tile Supporting Profile: Guarantees proper lower tile placement and alignment along the bottom flashing edge.
Who Specifies BA-EH-R and Where Is It Used?
The BA-EH-R is typically specified by roofing contractors, builders, and installers completing a skylight or roof window installation with the correct weatherproofing.
Common applications include:
Skylight and roof window weatherproofing
New installations and replacements
Residential and light-commercial roofs
Warranty-compliant skylight installation
Upgrade your ordering experience. Join Pro Club for contractors and facility pros to unlock trade pricing, priority customer service, extended returns, and project-planning resources on every purchase.
Frequently Asked Questions About High-Profile Roof Flashing Kits
What roofing material is the BA-EH-R for?
It is designed for high-profile roofing such as tiles, corrugated metal, and standing seams up to 3-1/2 inches deep. Using flashing that matches your roof covering ensures a durable, watertight fit.
Why do I need a flashing kit?
Deck-mounted skylights must be installed with the correct flashing to ensure the installation is weathertight, and the leak-proof warranty remains valid.
What primary components are included in the kit to prevent leaks?
The kit includes a top flashing piece, a 210 mm bottom apron with a butyl sealing strip, side channels with factory-installed sponge seals to block windblown debris/snow, an upper drainage gutter, and an integrated weep flap for condensation relief.
Why buy flashing kits from Best Access Doors instead of a general marketplace?
Best Access Doors specializes exclusively in access solutions, so you get direct access to product specialists who can confirm sizing, wall fit, and options for your application.
Get the Right Flashing for Your Skylight
The BA-EH-R provides precision weatherproofing and watertight leak protection for deck-mounted skylights on high-profile roofing materials up to 3 ½ inches deep. With durable powder-coated aluminum construction, side-sealing sponge channels, an extended butyl-sealed bottom apron, and a built-in condensation weep flap, it is engineered for seamless integration and warranty-compliant performance on tile and corrugated metal roofs.
We're here to help you pull off a smooth project. Call us at +1-888-327-5471 or request a quotetoday. Our team is here to provide fast, knowledgeable assistance with product selection, quotes, and order support.
