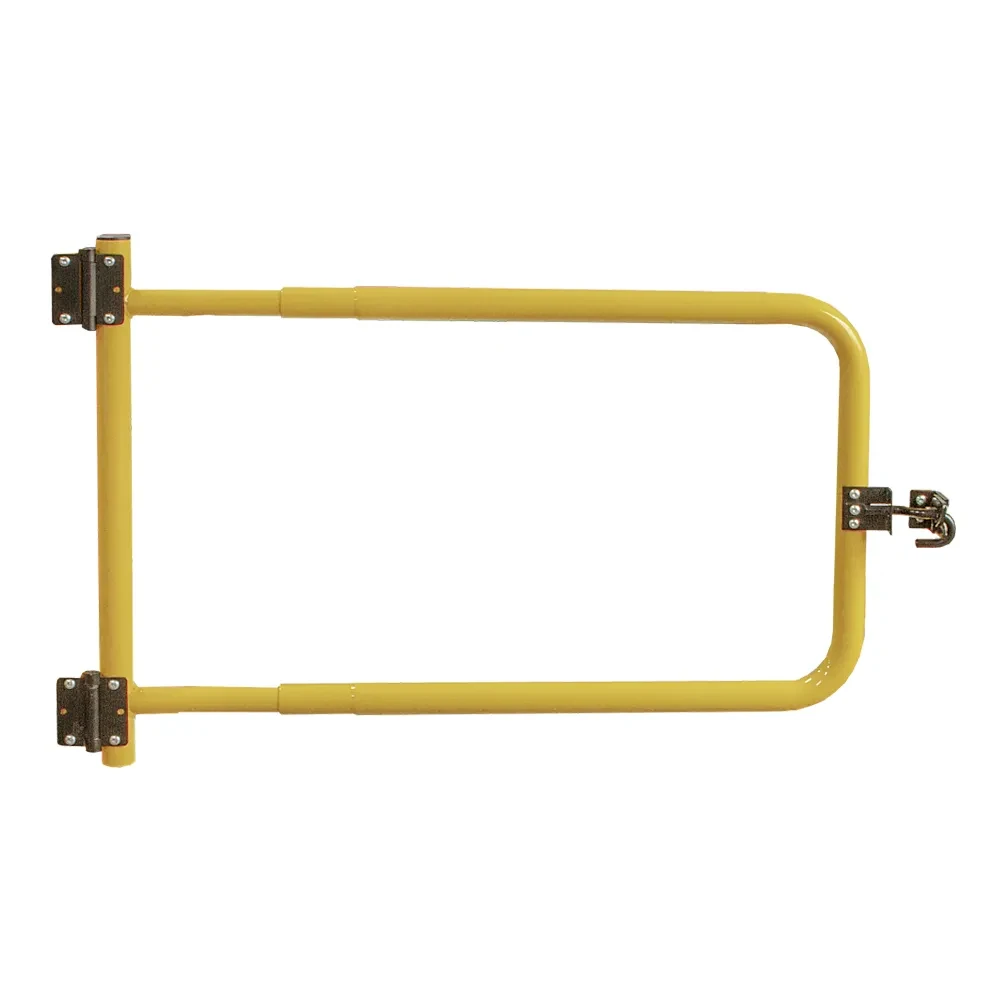

BA-AGRHSR Adjustable Gate for Roof Hatch Safety Railing

The BA-AGRHSR Adjustable Gate for Roof Hatch Safety Railing is a stand-alone, self-closing, self-latching gate engineered to replace hazardous open safety chains on existing roof hatch guardrails. Fabricated from 1- 5/8“ x .065" (16 gauge) galvanized steel tubing with a high-visibility yellow powder coat, the gate telescopes to fit openings from 30" to 48".

It easily bolts onto upright guardrail posts from any manufacturer, helping the railing system meet OSHA 29 CFR 1910.29 fall-protection requirements.

Why Choose BA-AGRHSR Adjustable Gate for Roof Hatch Safety Railing?

• Self-Closing and Self-Latching: A spring mechanism closes and latches the gate automatically, providing continuous protection at the railing opening.
• Supports OSHA Compliance: It replaces open safety chains with a self-closing, self-latching gate designed to help existing railings comply with OSHA 29 CFR 1910.29.
• Fits 30" – 48" Openings: The telescoping gate adjusts in the field to accommodate a range of existing roof hatch railing openings without requiring a separate gate size for each opening.
• Bolt-On Retrofit Installation: Mounts onto the upright posts of existing safety railings from any manufacturer, making it suitable for replacing chain-guarded openings.
• Durable Galvanized Steel: The 16-gauge galvanized steel tubing stands up to rooftop weather and repeated use.
• High-Visibility Finish: A safety yellow powder coat keeps the gate clearly visible on the roof.

Unsure if the BA-AGRHSR fits your space? Ask our team; We’ll verify your specs and help you find the precise match for your project.

What Are the Key Product Specifications for the BA-AGRHSR

• Fits Opening: 30"–48"
• Type: Stand-alone self-closing, self-latching gate
• Material: 1-5/8" × .065" (16-gauge) galvanized steel tubing
• Adjustability: Telescopes to fit a range of openings (30" to 48")
• Mounting: Bolts onto existing railing upright posts
• Closure: Automatic spring-closing and self-latching
• Overall Height:0” total height (21.6" tube center-to-center height).
• Frame Telescoping Adjustment: Minimum 34.7" to Maximum 56.1" overall frame width (31.5" to 52.9" rail length)
• Finish: Safety yellow powder coat
• Compliance: Supports OSHA CFR 29 1910.29 standards
• Application: Existing roof hatch safety railings

What Comes Standard and What Can Be Configured?

Every BA-AGRHSR ships with the following as standard:

• Galvanized steel hinge-side and latch-side gate assemblies
• Two adjustable spring hinges
• Gate-latch bracket, latch pin, and latch catch
• Plastic tube cap
• Zinc-plated steel set screws and Torx screws
• Yellow powder-coated finish

Need to confirm that the BA-AGRHSR will fit your existing railing and opening? Call our safety specialists at 1-888-327-5471 for technical support.

What to Know About Installation Requirements?

Fitting the Gate

The BA-AGRHSR bolts onto the upright posts of an existing safety railing and telescope to fit openings from 30" to 48". Confirm the opening width and the railing post diameter before ordering so the gate mounts and adjusts correctly.

Installation Notes

• Mount the hinge-side assembly: Secure the two 3-1/2" adjustable spring hinges to one upright railing post using the supplied mounting hardware.
• Set the gate width: Extend or retract the telescoping gate assemblies until the gate spans the opening and aligns with the receiving post.
• Secure the adjustment: Tighten the two 1/2"-13 set screws to hold the telescoping sections at the required width.
• Install the latch components: Mount the latch pin on the gate and secure the latch bracket and catch to the opposite railing post so the pin engages when the gate closes.
• Test the gate: Confirm that the gate closes automatically and latches securely without assistance.

For fall-protection and rooftop-access requirements, review the OSHA walking-working surfaces standard and confirm details with your design team.

Who Specifies BA-AGRHSR and Where Is It Used?

The BA-AGRHSR is typically specified by facility managers, safety officers, roofing contractors, and building owners upgrading rooftop railings for compliance.

Common applications include:

• Commercial rooftops - completing railing compliance
• Institutional buildings - self-latching access points
• Industrial facilities - rooftop safety upgrades
• Retrofit of chain-guarded railings
• Facilities standardizing rooftop safety

Upgrade your ordering experience. Join Pro Club for contractors and procurement pros to unlock trade pricing, priority customer service, extended returns, and project-planning resources on every purchase.

Frequently Asked Questions About Self-Closing Roof Hatch Safety Gates

1. Does the gate come with all mounting hardware?

Yes. The product includes 3-1/2" spring hinges, latch pin, gravity catch, tube caps, set screws, and Torx mounting screws.

2. Will it fit railings made by other manufacturers?

Yes. It is designed to bolt onto the upright safety railing posts of any manufacturer.

3. Does it close on its own?

Yes. A spring mechanism closes and latches the gate automatically for continuous protection.

What finish does it come in?

It ships in a high-visibility safety yellow powder coat.

Do I need to buy railings too?

No. The BA-AGRHSR is a stand-alone gate designed to be mounted on an existing railing. If you also need a railing, check out our full list.

Complete Your Rooftop Railing System

Replace open safety chains with a self-closing, self-latching gate that helps existing roof hatch railings meet OSHA fall-protection requirements. The BA-AGRHSR adjusts to fit 30"–48" openings and bolts onto existing railing posts, allowing facilities to improve rooftop access safety without replacing the entire railing system.
