48" x 48" - Aluminum Single Leaf Equipment Access Roof Hatch
Increase the efficiency of your rooftop job sites by adding BA-RHA-EQ-SL 48” x 48” Aluminum Single Leaf Equipment Access Roof Hatch by Best Access Doors! This square roof hatch boasts a larger opening to facilitate simple and stress-free movements of equipment and tools to and from the roof of your commercial, industrial, or residential buildings.
BA-RHA-EQ-SL's powerful gas-spring powered door ensures consistent, easier opening and closing so that maintenance personnel can safely transport tools and equipment to and from the job site. BA-RHA-EQ-SL's in-box-style design results in a stronger construction with less maintenance required.
Get to Know BA-RHA-EQ-SL
Maximum Clearance Space: This single-leaf door allows convenient room for maximum vertical circulation and transportation of components.
Weathertight and Airtight Composition: BA-RHA-EQ-SL features flush EPDM foam gaskets lining along the inside of its cover to keep dust, debris, and draft airflow out of your buildings.
Powerful Gas Spring Powered Curb: When engaged, gas-powered spring operators allow a strong and consistent opening, supporting a live load of up to 40 lbs./sq. Ft.
Improved Building Efficiency: This aluminum box-type roof hatch features a curb with up to 1" thick PIR insulation, providing an exceptional R-value of 6.
One-Handed Operation: BA-RHA-EQ-SL's heavy-duty aluminum pintle hinges lock into place, allowing for easier transportation of materials, inspections, and up to a 78-degree opening radius.
Self-Latching for Maximum Convenience: This model operates with a sturdy T-handle for a better grip and a self-latching mechanism when the job is complete.
Anti-Corrosive Composition: BA-RHA-EQ-SL comprises aluminum and stainless steel for exceptional durability and resistance to wear and tear, rust, and corrosion in harsh and moist conditions.
BA-RHA-EQ-SL accommodates a larger opening with more clearance space; however, the unit still maintains a lighter weight and aluminum composition. This airtight and weathertight aluminum-constructed roof hatch provides excellent durability and weather resistance and is ideal for areas with varying and extreme weather conditions.

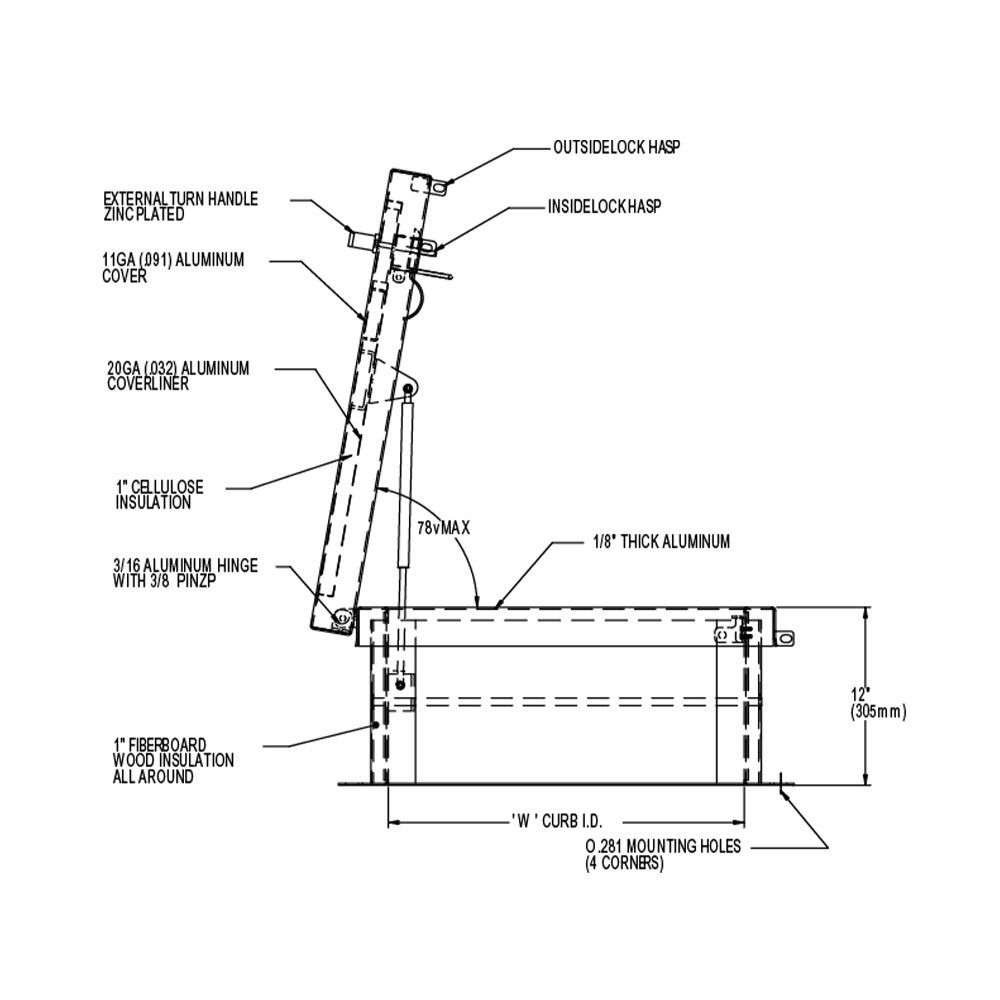

Specifications:

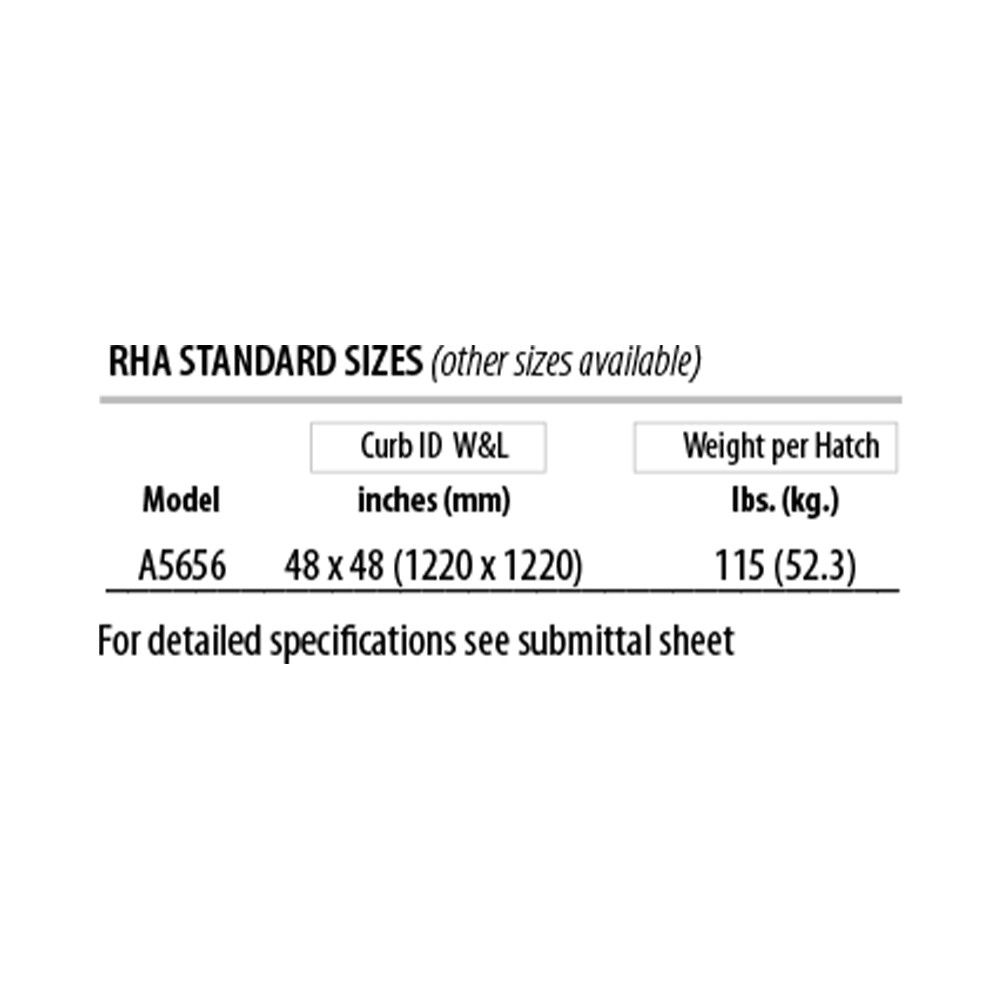

Dimensions: 48" x 48”
Cover: Double-skin constructed 1/8" thick
Insulation: 1" PIR (R-6) Insulation
Gaskets: EPDM foam gaskets attached to inside cover
Opening: Gas spring operators for up to 78-degree opening radius
Curb: 12" inch high 11-gauge aluminum with 1" PIR (R-6) insulation
Flange: 3.375" wide bottom flange with pre-drilled mounting holes
Door Latch: Self-latching, stainless steel outside T handle, with inside lock Note: An outside padlock provision is also included
Hinge: Heavy-duty aluminum pintle hinges with 3/8" pin
Material: Stainless steel and aluminum with mill finish
Get the job done efficiently and professionally by including BA-RHA-EQ-SL 48” x 48” Aluminum Single Leaf Equipment Access Roof Hatchby Best Access Doors!
Always One Call Away!
At Best Access Doors, we pride ourselves on upholding the highest commitment to our customer's satisfaction. Our customer reviews tell the story!
Simply choose the size that suits your needs! If you have any questions or concerns, you can reach us at (800)-483-0823 to connect with our world-class product experts.
Product Downloads
Spec Sheet
BA-RHA-EQ-SL
