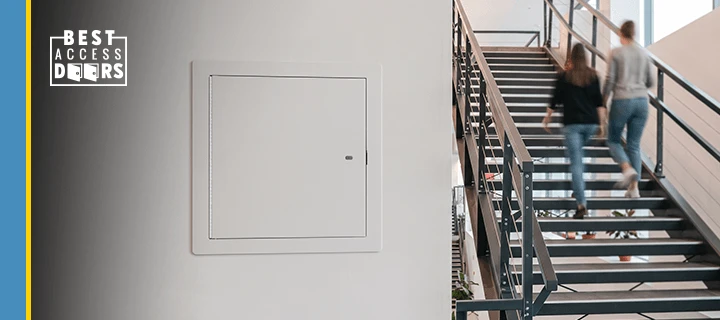

How to Choose a Fire-Rated Access Door: Ratings, Locations, Sizes, and Certifications

Choosing a fire-rated access door requires matching its rating, certification, size, construction, and approved installation to the surrounding fire-rated assembly. Selecting a product without verifying these details can result in failed inspections, unsuitable installation, replacement orders, rework, and schedule disruptions.

Project drawings provide the starting point, but the selected access door must also be reviewed against its product documentation. Contractors, architects, specifiers, and procurement teams should coordinate these requirements before framing begins or an order is placed.

Which Fire-Rated Access Door Ratings Does Your Project Require?

The required fire-rated access door rating depends on the surrounding rated assembly such as a shaft enclosure, corridor partition, occupancy separation, or equipment-room separation. It should come directly from the project plans, specifications, and applicable assembly details.

Review the access door’s documentation for the following:

• Listed fire-rating duration
• Frame and door construction
• Insulation material
• Automatic closing mechanism
• Latch or lock configuration
• Maximum permitted dimensions
• Required installation hardware
• Labeling and listing information

Comparing access products for a rated assembly? Browse fire-rated access doors and panels by construction, rating, dimensions, and installation application before finalizing your selection.

Where Can the Fire-Rated Access Door Be Installed?

A fire-rated access door can only be specified for locations and orientations covered by its documentation. Start by identifying the assembly shown on the plans. A vertical wall opening creates different product and installation requirements from a horizontal ceiling opening. The supporting construction, framing method, material thickness, and access-door orientation can all affect the selection.

Rated Wall Openings

For wall installations, confirm the wall construction, required rating, stud arrangement, available framing depth, and opening location. The selected panel should also fit between nearby utilities and structural components without interfering with the service that must remain accessible.

The access door’s frame must be compatible with the surrounding material. A product intended for masonry may require a different frame or installation method from one designed for drywall construction.

Rated Ceiling Openings

A fire-rated ceiling access panel must be specifically approved for ceiling installation. A fire-rated wall panel should not be rotated and installed overhead unless its documentation permits that orientation.

Ceiling installation can change how the door, hinge, closer, and latch operate. The installer should also confirm whether additional components, specific fastening methods, or size limitations apply to the horizontal opening.

Shaft and Service Openings

Access points in shafts, risers, and service areas require close coordination with the assembly details. Confirm which side of the assembly receives the panel, what utilities sit behind the opening, and how much clearance is needed to open the door and perform maintenance.

Each location should be checked against the plans, specifications, approved submittals, and the access door’s installation instructions.

Related: Which Fire-Rated Access Panels Are the Best for High-Risk Commercial Installs?

Which Fire-Rated Access Door Sizes Fit the Required Opening?

The correct fire-rated access door sizes depend on the required clear access, rough opening, frame dimensions, and available space within the assembly. Measuring only the visible opening can lead to an incorrect order.

Three dimensions should be confirmed before procurement:

• Door size: The nominal dimensions used to identify the product
• Rough opening: The opening required in the wall or ceiling for installation
• Outside frame dimensions: The total space occupied by the access-door frame

These measurements are related, but they are not always identical. Review the product data before framing the opening, particularly when the installation must fit between studs, pipes, ducts, cables, or other building components.

The required opening should be large enough for the intended inspection or maintenance task. A small panel may provide visual access but leaves insufficient room for tools, component removal, or hands-on work. Choosing an oversized panel can create framing conflicts or exceed the size permitted under the product listing.

You can review common dimensions through the access doors and panels shop-by-size page. Compare the selected dimensions with the product’s rough-opening requirements rather than relying on the category size alone.

When standard dimensions do not match the project opening, custom-sized access doors may be considered. However, custom dimensions must still be checked against the available rating, listing, construction, and installation limitations. A requested size should not be assumed to retain the same rating as a standard configuration.

Early coordination gives the estimator, installer, and procurement manager time to resolve dimension conflicts before the surrounding assembly is completed. It can also reduce replacement orders, field modifications, and delays caused by an access door that does not fit the prepared opening.

Which Certifications Should a Fire-Rated Access Door Have?

A fire-rated access door should carry the certification, listing, and label required by the project documents and applicable authority. Certification details help confirm how the product was evaluated and the conditions covered by that evaluation.

When reviewing a UL-rated access panel, look beyond the presence of the UL name. Confirm the rating duration, product category, listed orientation, maximum size, required components, and installation conditions associated with the label.

A UL label does not mean that one product can be installed in every fire-rated assembly. UL Solutions explains that markings and accompanying installation instructions communicate the applications and limitations associated with certified products. The label and product documentation should therefore be reviewed together.

The submittal should clearly identify:

• Manufacturer and model number
• Certification or listing organization
• Hourly fire rating
• Wall or ceiling application
• Door and frame materials
• Insulation
• Latch and closer details
• Available and permitted sizes
• Installation instructions
• Required accessories or hardware

Check whether the plans specify a particular testing organization, label, or standard. Substituting another fire-rated access panel based only on a matching hourly rating can overlook differences in orientation, materials, hardware, and listed use.

If a certification detail is unclear, request the technical documentation before approving the submittal. Questions about the label or permitted installation should also be resolved with the architect, specifier, manufacturer, and applicable authority before ordering.

Don't have every spec finalized yet? Start your fire-rated access door project intake. Our team can work with what you have.

When Should You Choose the BA-FRI Fire-Rated Access Door Insulated?

The BA-FRI Fire Rated Insulated Access Panel is an option for wall or ceiling openings where its documented rating, construction, dimensions, and installation conditions match the project requirements. It offers a fire rating of up to 3 hours for applications requiring access through fire-rated walls.

Its 16-gauge cold-rolled steel frame provides a sturdy installation perimeter, while the 20-gauge galvanneal steel door supports durability in commercial environments. The mineral wool insulation within the panel helps limit heat transfer through the opening.

A continuous piano hinge distributes movement along the door edge, supporting stable operation during repeated use. Every door includes an automatic closer, while models larger than 12 x 12 inches feature a panel release. These components help the door return to its closed position after maintenance.

Standard hardware includes either a tool-key-operated or ring-operated self-latching slam latch. Self-latching operation reduces the chance of the panel remaining unsecured after use. Optional lock configurations accommodate projects with different access-control needs.

Together, these features provide insulated construction, automatic closing, self-latching operation, and flexible hardware choices in one fire-rated access door.

Before adding the BA-FRI to a submittal, verify the required rating, installation orientation, opening dimensions, wall construction, and approved configuration. The chosen size, finish, latch, and optional hardware should match the product schedule, purchase order, and installation documents.

Coordinating the BA-FRI across several openings or reviewing a custom configuration? Request a quote with the required sizes, quantities, installation locations, ratings, and hardware so the order can be reviewed against your project details.

Planning a larger order or recurring access door purchases? Apply for the Pro Club to review the program options available to construction professionals managing ongoing procurement needs.

Frequently Asked Questions

1. Can a fire-rated access panel be installed in any rated wall?

No, a fire-rated access panel should only be installed in wall assemblies and configurations covered by its listing and documentation.

2. Can a wall access door be used as a fire-rated ceiling access panel?

A wall access door should not be used in a rated ceiling unless its documentation specifically permits ceiling installation.

Horizontal installation changes how the door and hardware operate. Confirm the listed orientation, size limitations, closing mechanism, fastening method, and surrounding ceiling construction before specifying the product.

3. Does every fire-rated access door need a UL label?

The required label depends on the project specifications, applicable requirements, and the authority reviewing the installation.

When a UL label is specified, select a UL-rated access panel with documentation that covers the proposed rating, size, assembly, and orientation. Do not treat the label as approval for installation conditions outside the product listing.

To Sum It Up

Choosing the correct fire-rated access door requires more than matching an hourly rating. The selection should account for the surrounding assembly, installation location, orientation, door construction, insulation, latching, closing mechanism, opening dimensions, certification, and label.

Reviewing these details before procurement can reduce failed inspections, incompatible orders, field modifications, and schedule disruptions. The BA-FRI Fire Rated Insulated Access Panel may fit projects requiring an insulated steel model with up to a 3-hour rating, provided its documented configuration corresponds with the opening.
